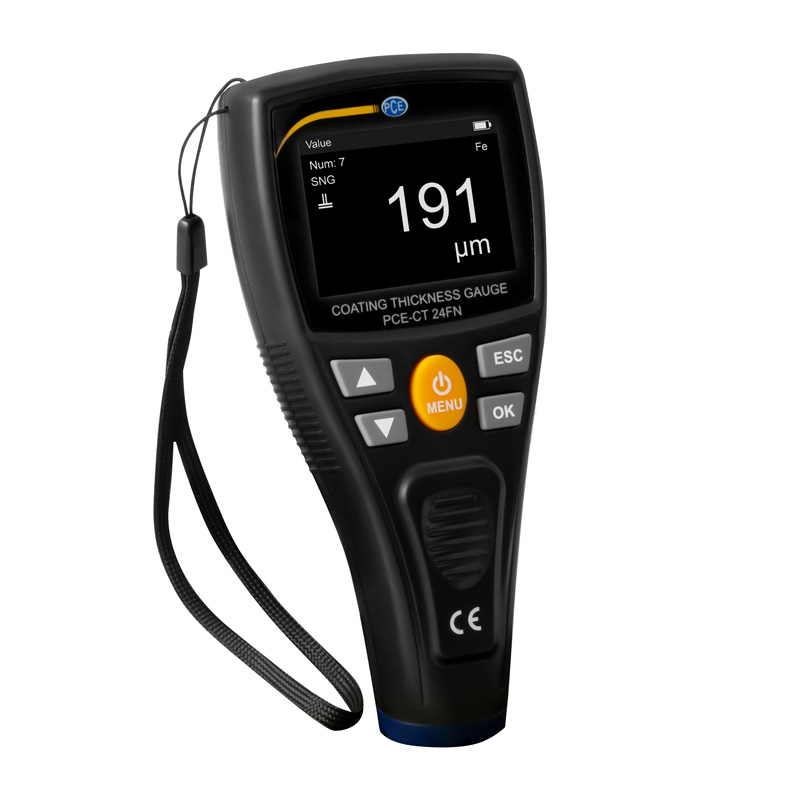

Thickness gauge with statistics function / Limit alarm function / Mains (AC adaptor) and battery operation / Measuring range up to 1500 μm / Rechargeable battery / LC display / Calibration set included in delivery / Automatic shutdown / Graphic display
– Data memory for later evaluations
– Rechargeable batteries
– For ferrous and non-ferrous metals
– Alarm when limit value exceeded
– Statistics function for analyzing a test object
– Alignment sensor for turning the display
– Measuring range 0 … 1500 μm
– Graphic representation of the measured values
Measuring range | 0 … 1500 μm / 0 … 59 mil / 0 … 1.5 mm |
Resolution | 0.1 μm (at <100 μm) 1 μm (at> 100 μm) 0.001 mm 0.1 mil |
Accuracy | ± 5 μm (at <150 μm) ± 3% + 1 μm (at> 150 μm) |
Smallest diameter (Fe) | 12 mm |
Smallest thickness (Fe) | 0.5 mm |
Curve wheel. minute (Fe) | Convex: 2 mm; concave: 11 mm |
Smallest diameter (nFe)� | 50 mm |
Smallest thickness (nFe) | 0.5 mm |
Storage | 100 groups of 15 readings each |
Display | 2.25 inch LC display |
Ambient temperature | 0 … 50°C / 32 … 122°F |
Power supply (batteries) | 3 x 1.2V AA Ni-MH 800 mAh |
Power supply (mains adaptor) � | Primary: 100 … 240V; 50/60 Hz; 0.45 A Secondary side: 5V DC; 1 A |
Dimensions | 70.3 x 38.6 x 149.59 mm / 2.8 x 1.5 x 5.9 in |
Weight | Approx. 136.9 g / < 1 lb with batteries |
