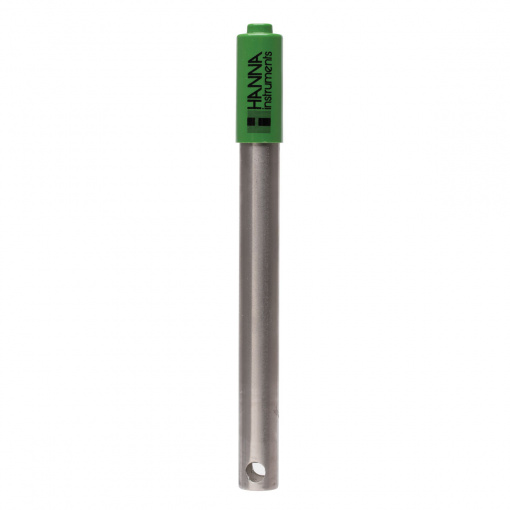

HI62911D – Titanium Body pH Electrode for Plating Baths with DIN Connector

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Uncategorized, เครื่องวัดคุณภาพน้ำ

รายละเอียดเพิ่มเติม

The HI62911D is a titanium body, polymer filled, double reference junction pH electrode with a DIN connector. The flat tip sensing portion of this electrode is made with general purpose glass.

The HI62911D also has a PTFE type junction along with a built-in temperature sensor and amplifier within a single probe design. This design consideration is ideal for measuring the pH in plating baths. The HI62911D is designed for use with Hanna’s HI99131 pH meter.

Titanium Body
Built-In Temperature Sensor
Recessed, Flat Tip

Measurement Range	pH: 0 to 13
Reference Cell Type	double, Ag/AgCl
Junction Type/Flow Rate	PTFE
Type of Electrolyte	polymer
Body Material	titanium body working as matching pin
Tip / Shape	flat
Matching Pin	yes
Max. Pressure	3.0 bar
Temperature Operating Range	0 to 80°C (32 to 176°F) – GP
Body Length/Overall Length	120 mm / 160 mm
Temperature Sensor	yes
Outer Diameter	14 mm
Cable	7-pole; 1 m (3.3′)
Connector Type	DIN
Amplifier	yes
Recommended Use	plating
