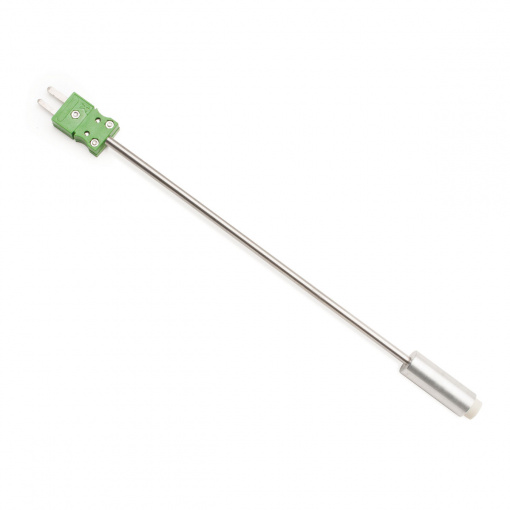

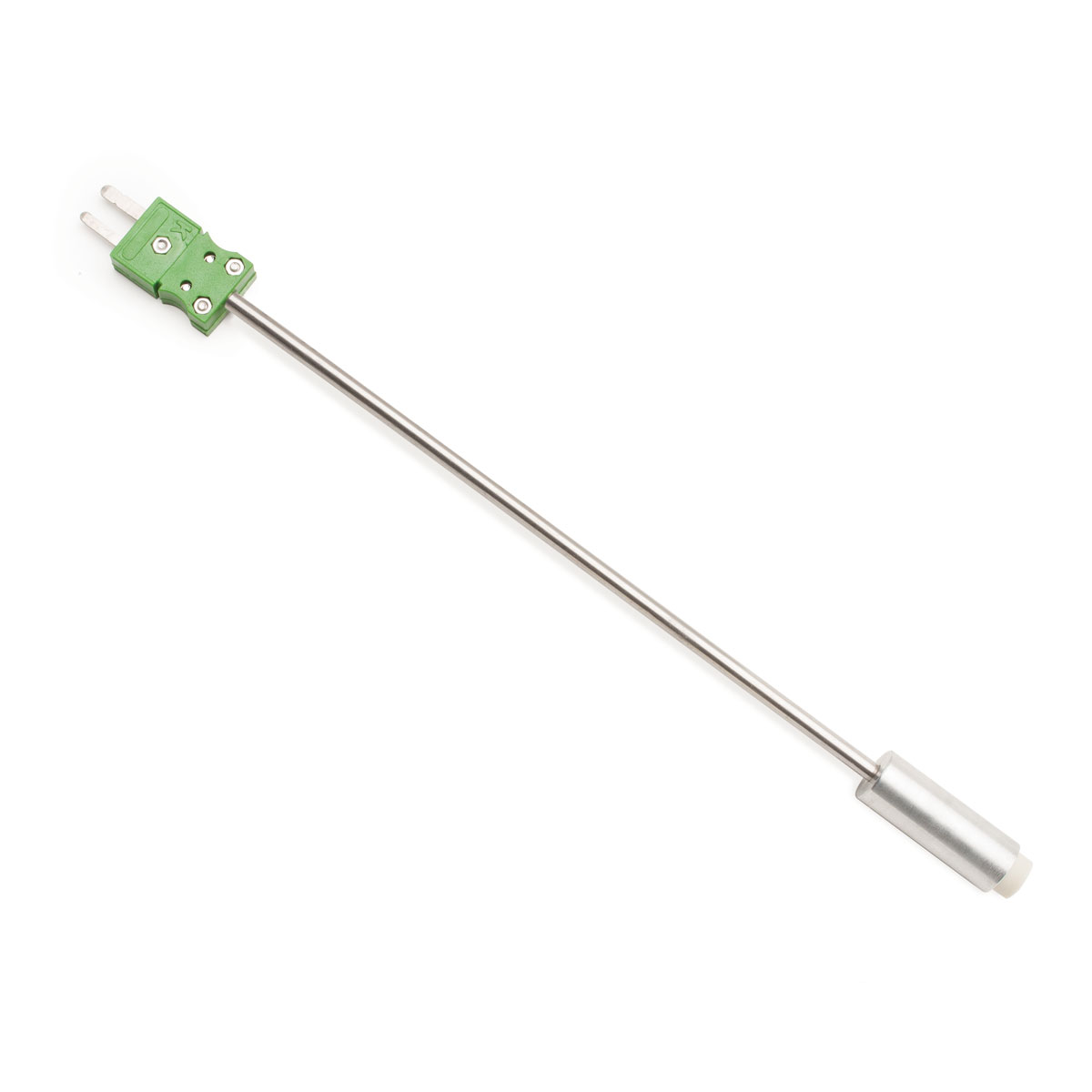

HI766PB Surface K-Type Thermocouple Probe

The HI766PB is a surface K-type thermocouple probe designed for use with the HI766HD probe handle and thermocouple thermometer. The flat, 16mm diameter surface of the probe allows users to obtain highly accurate temperature readings of furnaces, molds, and other high-temperature solid surfaces.

• Measures up to 650°C (1200°F)
• 8 second response time
• Stainless steel

• Max. Temperature	650°C (1200°F)
  Response time (90% of final value)	8 seconds
  Probe Material	stainless steel
  Probe Dimensions	L 200 mm (7.9″); D 16 mm (0.6″)
  Application	furnaces, hot solids, molds
