Electromagnetic Field Meter PCE-MFM 2400

Name: Electromagnetic Field Meter PCE-MFM 2400
SKU: 12519
Availability: BackOrder

PCE-MFM 2400

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: เครื่องวัดสนามแม่เหล็ก

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

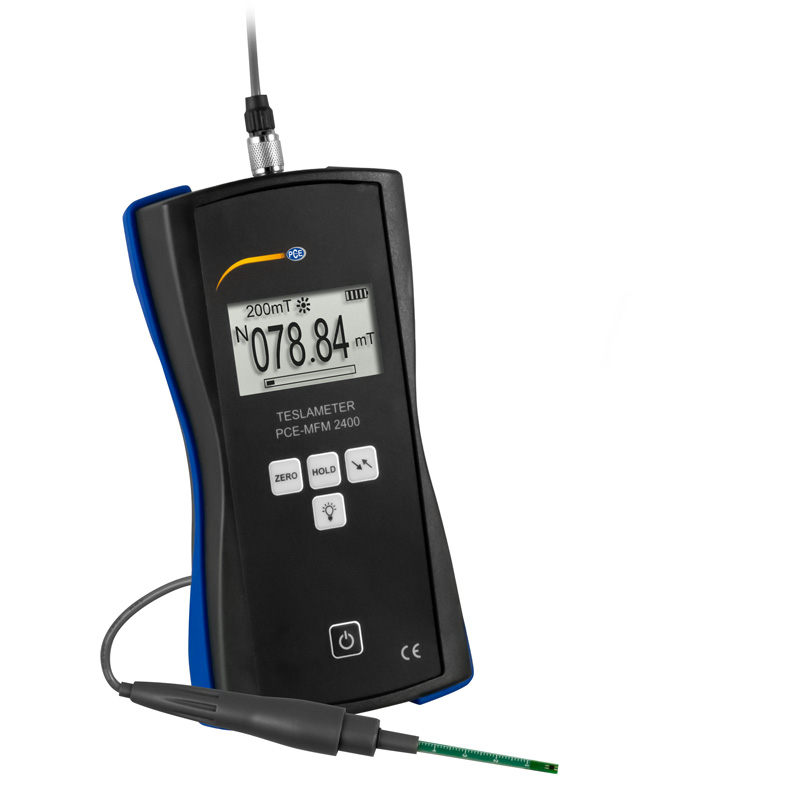

Electromagnetic Field Meter PCE-MFM 2400
Electromagnetic field meter with an accuracy of 1% / Tesla and Gauss measurement / For static magnetic fields�

With a measuring range of 2,400 mT, the Electromagnetic Field Meter covers a wide range of measuring tasks. The field strength meter has an accuracy of 1%. This makes the Electromagnetic Field Meter a very precise measuring device. For example, the Electromagnetic Field Meter can be used to test relays and permanent magnets for the existing magnetic field. The Electromagnetic Field Meter is therefore used in production processes or in quality control.

With the backlight on the Electromagnetic Field Meter, the measured values are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the Electromagnetic Field Meter automatically switches itself off after 5 minutes. This ensures that the battery of the Electromagnetic Field Meter does not discharge completely.

�

– Very precise measurement technology�

– Measuring range up to 24,000 G and 2,400 mT

– Transverse sensor

– For measuring static magnetic fields

– Automatic shutdown

Measuring range	0… 200 mT
	200… 2,400 mT
	0 … 2,000 G
	2,000 … 24,000 G

Accuracy	± 1% of reading

Resolution	0.01 mT
	0.1 g

Measuring direction	Transversal
Magnetic field	Static (DC)
Unit	mT, G
Power supply	1 x 9V block battery
Automatic shutdown �	Automatic shutdown after 5 minutes in idle status
Modes	Hold mode, measurement mode
Display	Backlight digital 4-digit value display
Operating temperature	32 … 122° F, / 0… 50°C
Storage temperature	-4 … 122°F / 20… 50°C
Dimensions	185 x 97 x 40 mm /�7.28 x 3.82 x 1.57 in
Weight	0.68 lb, 310 g
Sensor	Hall sensor transversal, cable length approx. 3.28 ft., 1 m
