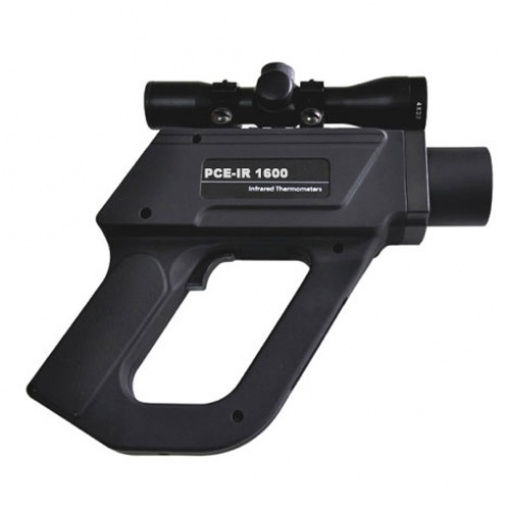

PCE-IR 1600 is a high-temperature infrared (IR) temperature gun, thermometer or pyrometer ideal for use in steel, metal and ceramic mold casting and other high-temperature industrial applications. Thanks to an impressive optical resolution of 300:1, the PCE-IR 1600 pyrometer can measure the temperature of very small objects. In addition, the pyrometer’s emissivity can be adjusted according to the surface of the material to be measured.
– Adjustable temperature units: Celsius (°C) or Fahrenheit (°F)
– Adjustable emissivity
– Optical resolution of 300:1
– Max, min, hold, high / low alarm and auto shut-off functions
– Temperature offset capability
– Easy-to-use trigger control
– Laser
– Telescope
– LCD with backlight
– Internal memory stores up to 2000 measurement protocols
– USB port, data cable and Windows-compatible software for data transfer to PC
***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.
| Measuring range | 385 … 1600°C / 725 … 2912°F |
| Spectral | 1.6 μm |
| Accuracy | ± (0.3% T measurement ± 1°C / 1.8°F) |
| Reproducibility | ± (0.1% T measurement ± 1°C / 1.8°F) |
| Optical resolution | 300: 1 |
| Response time | 100 ms |
| Visor | Double laser class II (<1 mW) |
| Focus� | 12 mm / .5 in @ 3.6 m |
| Scope | All types |
| Additional functions | MIN / MAX / Scan / HOLD |
| Alarm functions | Optical and acoustic HIGH / LOW alarm |
| Emissivity | Adjustable between 0.100 … 1.000 |
| Data storage | 2000 readings |
| Interface� | USB� |
| Software | Data cable and software included |
| LCD lighting | Three-color alarm display |
| Tripod mounting device | Yes, for all standard tripods |
| Power supply | Ni-MH rechargeable battery |
| Battery life | 5 h with laser and display illumination,� 25 h without laser and display illumination |
| Adapter | 220V AC, 50 / 60Hz |
| Storage temperature | -20 … 60°C / -4 … 140°F |
| Ambient temperature | 0 … 50°C / 32 … 122°F |
| Relative humidity | 10 … 95% non-condensing |
| Dimensions | 264 x 203.5 x 60 mm / 10.4 x 8 x 2.4 in |
| Weight | 1000 g / 2.2 lbs |
|
The Connect Report software for the PCE-IR 1000 Series high-temperature meter is included in delivery and offers the following options:
|
|
