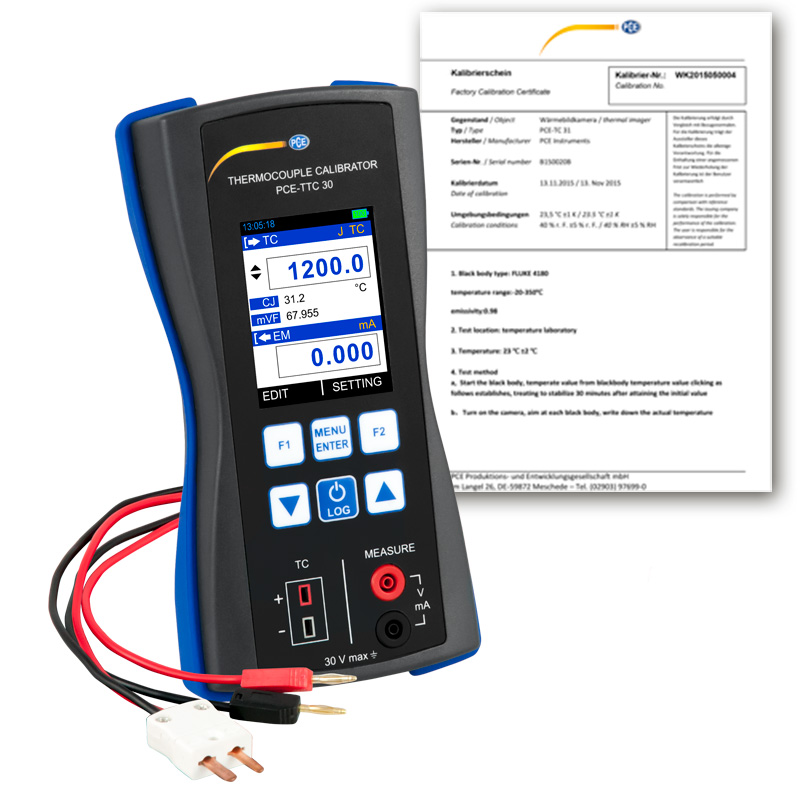

Thermocouple Calibrator PCE-TTC 30-ICA incl. ISO Calibration Certificate

Name: Thermocouple Calibrator PCE-TTC 30-ICA incl. ISO Calibration Certificate
SKU: 10487
Availability: BackOrder

PCE-TTC 30-ICA

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Calibrators

รายละเอียดเพิ่มเติม

Thermocouple Calibrator PCE-TTC 30-ICA incl. ISO Calibration Certificate
Thermocouple Calibrator to simulate and measure thermocouples, current and voltage / Li-Ion battery / Continuity tester / Ramp function

The thermocouple calibrator PCE-TTC 30 can be used to simulate different thermocouples as well as mV. Thus, the thermocouple calibrator can be used for many thermometers and temperature displays with thermocouple connection. The PCE-TTC 30 thermocouple calibrator simulates the most popular thermocouples, including K, T, S. The simulator for thermocouples has an accuracy of 0.3°C / 0.54°F, making it easy to accurately calibrate thermometers.

In addition to direct specification of temperatures or extra-low voltages up to 250 mV, the thermocouple calibrator can be operated in ramp mode. Here, the user can decide whether the ramp should be run indefinitely or at defined intervals. The miniature USB interface can be used to load the thermocouple calibrator. Furthermore, recorded data can be transmitted via this interface to a PC.

– Simulation and measurement mode
– Battery operation
– For thermocouples E, J, K, T, B, R, S, N, mV
– 24 V supply for current loops
– HART compatible
– Manual mode & ramp function
– Continuity test
– Data logger function
– incl. ISO Calibration Certificate

Voltage DC V
Measuring range		Resolution	Accuracy
0 … 30V		0.001V	± 0.02% of reading + 2 Dgt

Current DC mA
Measuring range		Resolution	Accuracy
0 … 24-mA		0.001-mA	± 0.02% of reading + 2 Dgt

Measurement / Simulation
Thermocouples	Measuring range	Resolution	Accuracy
E	-200 … 1200°C / -328 … 2192°F	0.1°C / 0.18°F	± 0.3°C / 0.54°F
J	-200 … 1200°C / -328 … 2192°F	0.1°C / 0.18°F	± 0.3°C / 0.54°F
K	-200 … 1372°C / -328 … 2501°F	0.1°C / 0.18°F	± 0.3°C / 0.54°F
T	-200 … 400°C / -328 … 752°F	0.1°C / 0.18°F	± 0.3°C / 0.54°F
B	450 … 1800°C / 842 … 3272°F	0.1°C / 0.18°F	± 0.3°C / 0.54°F
R	0 … 1750°C / 32 … 3182°F	0.1°C / 0.18°F	± 0.3°C / 0.54°F
S	0 … 1750°C / 32 … 3182°F	0.1°C / 0.18°F	± 0.3°C / 0.54°F
N	-200 … 1300°C / -328 … 2372°F	0.1°C / 0.18°F	± 0.3°C / 0.54°F
mV	10 … 80 mV	0.001 mV	± 0.02% of reading + 2μV
	-10 … 250 mV	0.01 mV	± 0.02% of reading + 0.02 mV

Note: The specifications refer to the temperature standard ITS-90

General specifications
Display modes		Measurement: mA / V / thermocouple / mV Simulation: thermocouple / mV
Temperature units		°C / °F / K
Cold junction compensation error		≤ ± 0.5°C / 0.9°F
Maximum input voltage		30V DC
Temperature coefficient		<30 ppm
Input impedance measurement		Thermocouple / mV / V:> 1 MΩ Current measurement: 10 Ω
Response time		<100 ms
Impedance		> 4.7 kΩ with thermocouple / mV
Refresh rate display		10 Hz
Isolation		500V DC
Data storage		Internal memory 150000 readings
Interface		USB 2.0
Display		2.4″ TFT LCD 240 x 320 pixels LED illuminated
Output voltage current loop		24V DC / 24mA
HART mA loop resistance		250 Ω ± 20%
Special features		Step and ramp function Automatic and manual mode √x, x2: For the measuring function
Continuity test		Adjustable threshold up to 100 Ω
Power supply		3.7V / 2300mAh Li-ion battery
Charging time		about 5 h
Power adapter		Input: 100 … 240V AC / 50/60 Hz Output: 5V / 1 A DC
Battery life		Approx. 15 h: Simulation and measurement with low LCD illumination Approx. 8 h: Measurement with low LCD illumination
Dimensions		162 x 82 x 40 mm
Weight		About 300 g / < 1 lb
Degree of protection		IP20
Operating conditions		Battery operation: 0 … 55°C / 32 … 131°F, 30 … 90% RH Main operation: 0 … 45°C / 32 … 113 °F, 30 … 90% RH
Storage conditions		-20 .. 60°C / -4 … 140°F, 30 … 90% rh non-condensing
Heating time		About 15 minutes
