Coating Thickness Gauge เครื่องวัดความหนาสี PCE-CT 65

Name: Coating Thickness Gauge เครื่องวัดความหนาสี PCE-CT 65
SKU: 10849
Price: 14166.8 THB
Availability: BackOrder

ราคาพิเศษ ฿13,240.00 excl VAT

฿14,166.80 incl VAT

PCE-CT 65

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: เครื่องวัดความหนาผิวเคลือบ

รายละเอียดเพิ่มเติม

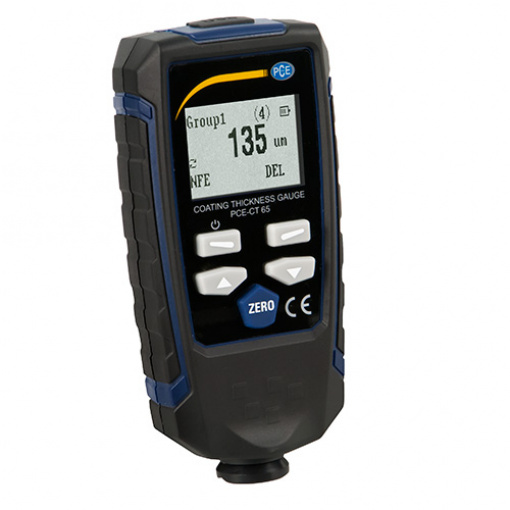

PCE-CT 65 Coating Thickness Gauge
Non-destructive coating and dry film thickness (DFT) measuring device for use on ferrous and non-ferrous metal substrates

PCE-CT 65 is a coating thickness gauge that uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum. This thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications.

The easy-to-use downloadable PC-compatible software included with this thickness gauge allows for detailed analysis of measurement results via computer. Measurement values are shown in a table and different working modes can be selected for data filtering. Statistics include the maximum, minimum and average value per working group. Statistics can be divided by ferrous and non-ferrous material. The software also counts how many readings have been stored in each material group. For more details, please refer to the user manual.

– Includes calibration shims and blocks for DIY accuracy testing, a carrying case for easy transport, and a 2-year warranty against manufacturer defects
– Optional ISO calibration certificate available for purchase separately – see accessories tab for details
– Features two measuring modes (ferrous and non-ferrous) with integrated sensors for comfortable, one-handed operation
– Saves up to 1500 measurements to memory
– Comes with a USB cable and downloadable PC software (see downloads tab) for detailed analysis of measurement results via computer

Ferrous metals

Principle	Magnetic induction
Measuring range	0 … 1350 µm / 0 … 53.1 mils
Accuracy	0 … 1000 µm: (±2.5 % ±2 µm) 1000 µm … 1350 µm: ±3.5 % 0 … 39.3 mils: (±2 % ±0.08 mils) 39.3 mils … 53.1 mils: ±3.5 %
Resolution	0 … 100 µm: 0.1 µm 100 µm … 1000 µm: 1 µm in 1000 mm … 1350 µm: 0.01 mm 0 … 10 mils: 0.01 mils 10 mils … 53.1 mils: 0 … 1 mils
Smallest surface	Ø 7 mm / Ø 0.3 in
Min. curvature radius	1.5 mm / 0.05 in
Min. substrate thickness	0.5 mm / 0.02 in
Non-ferrous metals
Principle	Eddy current
Measuring range	0 … 1350 µm / 0 … 53.1 mils
Accuracy	0 … 1000 µm: ±(2.5 % ±2 µm) 1000 µm … 1350 µm: ±3.5 % 0 … 39.3 mils: ±(2 % ±0.08 mils) 39.3 mils … 53.1 mils: ±3.5 %
Resolution	0 … 100 µm: 0.1 .mu.m 100 µm … 1000 µm: 1 µm in 1000 mm … 1350 µm: 0.01 mm 0 … 10 mils: 0.01 mils 10 mils … 53.1 mils: 0 … 1 mils
Smallest surface	Ø 5 mm / Ø 0.2 in
Min. curvature radius	3 mm / 0.1 in
Min. substrate thickness	0.3 mm / 0.01 in
Units	µm, mils
Functions	Alarm function, display lighting, automatic shutdown, calibration, memory function
Memory option	30 storage groups with a capacity of 50 measurements each = 1500 measurements total
Interface	USB
Environmental conditions	0 … 40°C / 32° F … 104°F, 20% … 90% rh
Power supply	2 x 1.5V AAA batteries
