Vibration Analyzer PCE-VDR 10

Name: Vibration Analyzer PCE-VDR 10
SKU: 18777
Availability: BackOrder

PCE-VDR 10

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: เครื่องวัดความสั่นสะเทือน / Vibration Meter

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

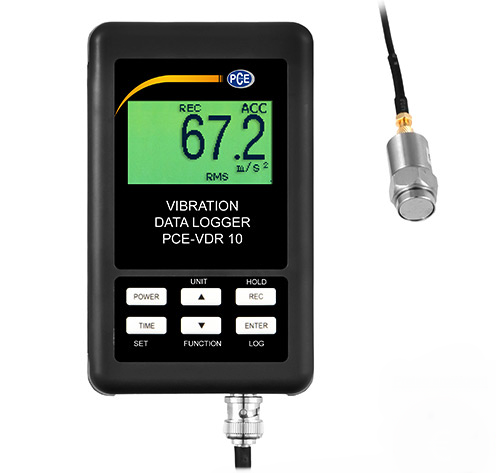

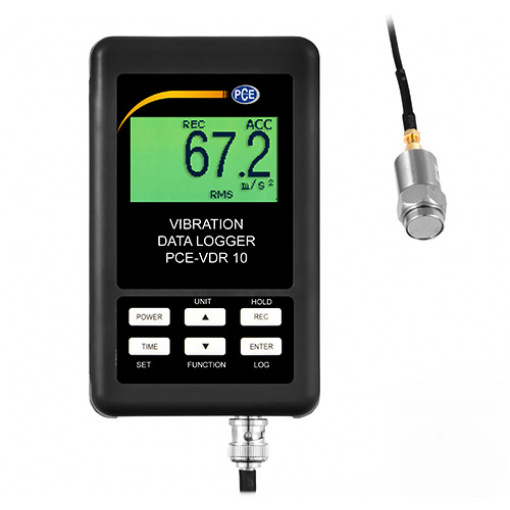

PCE-VDR 10 is a single-axis accelerometer or vibration analyzer with real-time measurement and data logging capabilities. This vibration monitor records acceleration (m/s, g, ft/s) as well as speed (mm/s, cm/s, in/s) measurements and saves the measured data to an included SD card memory. Note: To set up the SD card for the first time, the PCE-VDR 10 must be connected to AC power.

Note: To set up the SD card for the first time, the PCE-VDR 10 must be connected to AC power (AC power supply NET-LUT or NET-LUT-US sold separately – see accessories tab).

– Measures acceleration (m/s, g, ft/s) and speed (mm/s, cm/s, in/s)
– Adjustable automatic data logging
– SD card memory
– RS-232 and USB interface
– Data can be downloaded to a computer and analyzed using Microsoft Excel
– Backlit LCD screen
– Portable

Frequency range	10 … 1000 Hz
Acceleration measuring range (at 50 m/s, 160 Hz)	0.5 … 199.9 m/s, 0.05 … 20.39 g, 2 … 656 ft/s
Resolution	0.1, 0.01, 1
Accuracy	± (5% of reading + 2 digits)

Speed measuring range (at 50 mm/s, 160 Hz)	0.5 … 199.9 mm/s, 0.05 … 19.99 cm/s, 0.02 … 7.87 in/s
Resolution	0.1, 0.01, 1
Accuracy	± (5% of reading + 2 digits)

Display	LCD
Display update time	update time: 1 second
Memory	SD card (included)
Automatic data logging interval	5 … 3600 seconds (adjustable)
Analog output	4 … 20 mA
Power supply	6 x 1.5 V AAA batteries or 9 V DC electric power (adapter sold separately)
Interface	RS-232 and USB
Dimensions	132 x 80 x 32 mm (5.20 x 3.15 x 1.26″)
