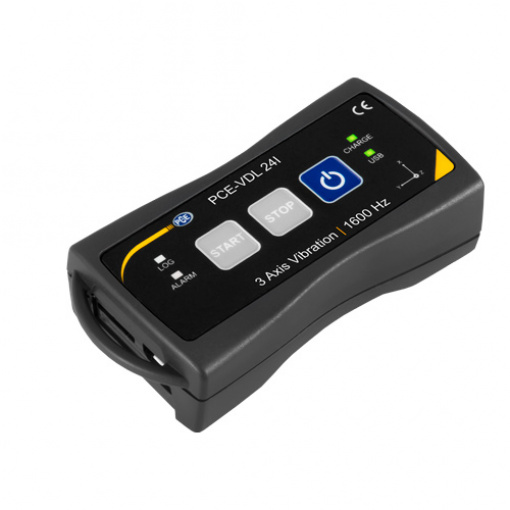

Condition Monitoring Vibration Meter PCE-VDL 24I 3-Axis
PCE-VDL 24I
Availability : กรุณาติดต่อสอบถาม
with up to 1600 Hz
The vibration meters of the PCE-VDL series are available in two versions. The vibration meter PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The PCE-VDL 24I has 3-axis acceleration and the max. sampling rate of the acceleration sensor is 1600 Hz.
With the vibration meter PCE-VDL 24I the acceleration sensor is even delivered with a sampling rate of 1600 Hz. The shock and vibration logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.
| 3-Axis Acceleration Measured Variable | |
| Measuring range | ±16 g |
| Accuracy | ±0.24 g |
| Measurement / storage rate | 1600 Hz … 1 Hz |
| General Technical Data of the 3-Axis Accelerometer | |
| Storage capacity | 2.5 million measured values per measurement, 3.2 billion measured values with the enclosed 32 GB microSD memory card |
| Button | Start / stop of a measurement; On or off switch of the data logger |
| LED | Log: operating status |
| Power supply | Integrated Li-Ion battery 3.7 V / 500 mAh |
| Integrated sensors | 3-axis acceleration |
| Interface | USB |
| PC Software | Free setup and evaluation software (Windows XP / Vista / 7/8/10 32-bit / 64-bit) for recording and evaluating the data. |
| Operating conditions | Temperature -20 … +65 °C |
| Storage conditions | Temperature +5 … +45 °C (ideal |
| Standards | The PCE-VDL 24I complies with the EU RoHS / WEEE directive. |
| Weight | ca. 60 g |
| Dimensions (L x W x H) | 87 x 44 x 23 mm |
