Condition Monitoring Voltmeter PCE-ODM 10

Name: Condition Monitoring Voltmeter PCE-ODM 10
SKU: 11178
Availability: BackOrder

PCE-ODM 10

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Condition Monitoring

รายละเอียดเพิ่มเติม

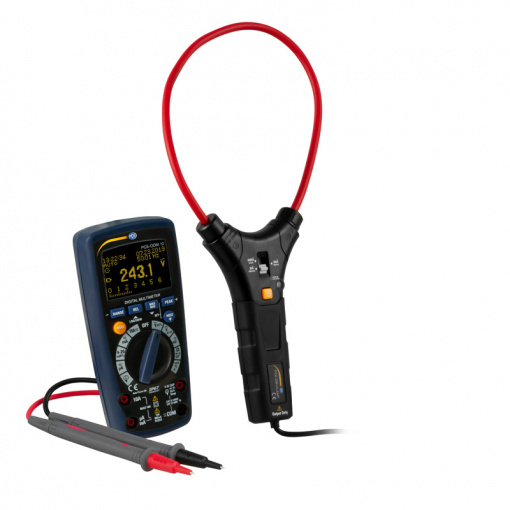

Condition monitoring voltmeter PCE-ODM 10
Multimeter with OLED display / Measurement up to 1000V AC & DC / Incl. Rogowski coil up to 3000 A / MIN, MAX, relative and peak measurement / IP 67 Multimeter

This voltmeter has both automatic and manual range selection and a dual OLED display. The measured values are displayed on the OLED number display up to 6000 digits and in the bar graph. The readings can be read easily and changes can be displayed quickly. The voltmeter has full input protection and complies with protection class CATIII 1000V.

Simple and direct selection of the basic functions by means of pushbuttons and autom. Range selection for: DCV, ACV, DCA, ACA, ohms, diode, continuity, capacitance, frequency and temperature measurement functions. The voltmeter measures voltages up to 1000V AC / DC. The current can be measured directly up to 10 A AC / DC and over the Rogowski coil up to 3000 A AC. The case of the voltmeter is IP67 protected and thus perfectly usable in a robust everyday industrial environment.

– OLED display
– Minimum value and maximum value, peak level
– Hold function
– Relative value measurement
– Diode test
– Continuity tester
– Incl. current loop
– Automatic range selection
– Automatic shutdown
– Incl. Rogowski coil for 3000 A AC

Measuring function
DC voltage DC	Measuring range	Resolution	Accuracy
	60 mV	0.01 mV	± (0.5% from + 5 Dgt)
	600 mV	0.1 mV	± (0.5% from + 5 Dgt)
	6V	0.001 V	± (0.5% from + 5 Dgt)
	60V	0.01V	± (0.5% from + 5 Dgt)
	600V	0.1V	± (0.8% from + 5 Dgt)
	1000V	1 V	± (0.8% from + 5 Dgt)

AC voltage AC	Measuring range	Resolution	Accuracy
(TRMS)	60 mV	0.01 mV	@ 50 … 60 Hz:
	600 mV	0.1 mV	± (1% from + 5 Dgt)
	6V	0.001V
	60V	0.01V	@ 61Hz … 1KHz:
	600V	0.1V	± (3% from + 5 Dgt)
	1000V	1V

AC + DC TRMS	Measuring range	Resolution	Accuracy
Tension	6V	0.001V	@ 50Hz … 1KHz:
	60V	0.01V	± (3% from + 40 Dgt)
	600V	0.1V
	1000V	1V

DC DC	Measuring range	Resolution	Accuracy
	600 μA	0.1 μA	± (1% from + 5 Dgt)
	6000 μA	1 μA	± (1% from + 5 Dgt)
	60-mA	0.01-mA	± (1% from + 5 Dgt)
	600-mA	0.1-mA	± (1% from + 8 Dgt)
	6 A	0.001 A	± (1.5% from + 8 Dgt)
	10 A	0.01A	± (1.5% from + 8 Dgt)

AC AC	Measuring range	Resolution	Accuracy
(TRMS)	600 μA	0.1 μA	± (1.2% from + 5 Dgt)
	6000 μA	1 μA	± (1.2% from + 5 Dgt)
	60-mA	0.01-mA	± (1.2% from + 5 Dgt)
	600-mA	0.1-mA	± (1.2% from + 5 Dgt)
	6 A	0.001 A	± (1.5% from + 8 Dgt)
	10 A	0.01A	± (1.5% from + 8 Dgt)
4 … 20-mA %	-25 … 125%	0.01%	± 50 digits

AC AC	measuring range	resolution	accuracy
Over Rogowski coil	30 A	0.01A	± (1.2% vMw + 10 Dgt)
	300 A	0.1 A
	3000 A	10 A

Resistance	Measuring range	Resolution	Accuracy
	600 Ω	0.1 Ω	± (1.2% vMw + 10 Dgt)
	6 kΩ	0.001 kΩ	± (1.2% vMw + 5 Dgt)
	60 kΩ	0.01 kΩ	± (1.2% vMw + 5 Dgt)
	600 kΩ	0.1 Ω	± (1.2% vMw + 5 Dgt)
	6 MΩ	0.001 MΩ	± (1.2% vMw + 5 Dgt)
	60 MΩ	0.01 MΩ	± (2.5% vMw + 10 Dgt)

Frequency	Measuring range	Resolution	Accuracy
	40 Hz … 100 kHz �	0.01 Hz … 0.001 kHz	± 0.5% of Mw.

Duty cycle	Measuring range	Resolution	Accuracy
	20 … 80%	0.1%	± (1.2% from + 2 Dgt)

Capacity	Measuring range	Resolution	Accuracy
	999.9 nF	0.1 nF	± (1.2% from + 8 Dgt)
	9.999 nF	0.001 μF	± (1.5% from + 8 Dgt)
	999.9 nF	0.1 μF	± (1.5% from + 8 Dgt)
	99.99 n.f.	0.01 mF	± (2.5% vMw + 20 Dgt)

Temperature with	Measuring range	Resolution	Accuracy
Thermocouple type K �	-40 … 600°C / -40 … 1112°F �	0.1°C / 0.18°F	± (1.5% from + 3°C / 5.4°F)
	600 … 1000°C / 1112 … 1832°F	1°C / 1.8°F	± (1.5% from + 3°C / 5.4°F)

General technical data
Isolation		Class 2 Double insulation
Casing		IP67 plastic housing
Diode test		1.5-mA test current
		3V DC open circuit voltage
Continuity test		Alarm tone if resistance < 50 Ω
Display		6,000 digit OLED
Refresh rate display		3 Hz
Automatic shutdown		After 30 minutes
Input impedance		30 MΩ AC / DC V
AC response		TRMS
AC bandwidth		50 … 1000 Hz
Power supply		Digital multimeter: 9V block battery
		Rogowski coil: 2 x 1.5V AAA battery
Fuses		800-mA / 1000V fast acting (6.3 x 32 mm)
		10 A / 1000V fast acting (10 x 38 mm)
Operating conditions		0 … 40°C / 32 … 104°F, < 70% rh
Storage conditions		-10 … 60°C / 14 … 140°F, < 80% rh
Operating altitude		< 2000 m / 6561.7 ft above sea level.
Dimensions		170 x 79 x 50 mm / 6.7 x 3.1 x 2 in
Weight		342 g / < 1 lb
Security		UL61010-1 v3
		CAT IV 600V
		CAT III 1000V
Pollution degree		2
