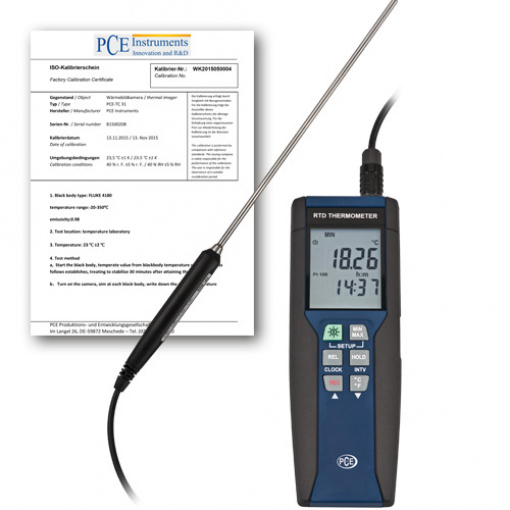

The Data- Logger with microprocessor is a high precision 1-channel temperature gauge. The Data- Logger with microprocessor is ideal for use with various Pt100 sensors. Due to the fact that it uses 4-wire technology it has a very fast response time and precision. Therefore, the sensors of the Data- Logger with microprocessor are ideal for all processes that require precision and quick response. The temperature range of the Data- Logger with microprocessor reaches of -100 to 400ºC / -148 … 752ºF. The comprehensive software and easy to use Data- Logger with the microprocessor allows a simple assessment to see the values of a real-time measurement. The internal clock with date and time allows the user to accurately assign the results. The Data- Logger has an internal Data- Logger with adjustable measuring range.
– Automatic shutdown
– High accuracy
– Backlight
– Software included
– Internal data logger
– Internal Clock
– Class A, 4-wire. Pt100 sensor
– Data-Hold Function
– Selectable units (°C / °F)
***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.
Sensors | Measurement range | |
Measurement range | -100 … 400°C / -148 … 752°F | |
Accuracy | ±0.05% 0.1ºC / 0.18ºF (between 18ºC … 28ºC / 64.4 … 82.4ºF) just the device | |
Resolution | 0.01ºC / 0.018ºF | |
Sensor | Class A, 4-wire. Pt100 sensor | |
Display | 5 positions, LCD | |
Data transmision | USB | |
Reproducibility | A measurement value every 0.5 s | |
Power supply | 1 x 9V battery or network adapter (optional) | |
Dimensions | 185 x 65 x 36 mm / 7.3 x 2.6 x 1.4 in | |
Weight | 360 g / < 1 lb | |
Operating conditions | 0 … 60ºC / 32 … 140º, 80% R.H. | |
Storage conditions | -10 … 60ºC / 14 … 140º, 80% R.H. |
