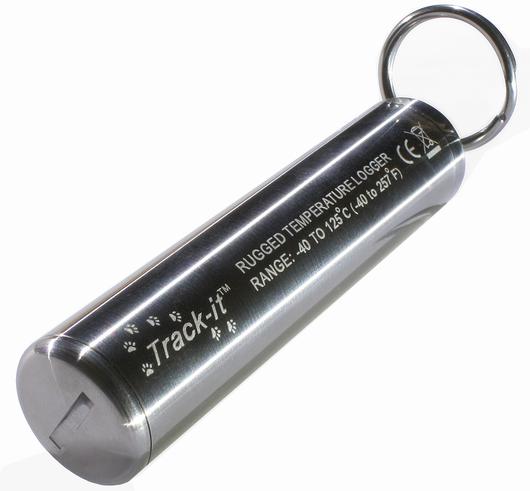

Track-It™ Rugged Temp Data Logger

หมวดหมู่: Temperature Data Loggers

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

The Track-It Rugged Temperature Data Logger is a submersible battery-powered stand-alone compact data logger that records up to 32,000 temperature data samples. A wide temperature range and 316L stainless steel IP68 packaging make it versatile and rugged enough for the more strenuous temperature logging applications. Moisture, corrosion, and forces are prevented from affecting your measurements, as well as submersion.

The unit is easily configured using the downloadable Track-It Software. Connect the logger to an open USB port on your PC, and the software identifies the logger. Use the internal push button to start and stop recording and check status or configure the unit to start recording immediately, start and/or stop at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The onboard data storage is non-volatile, so data will not be lost in a depleted battery.

Typical Uses

FDA
Storage
Food
Oil and Gas
Buildings
Laboratories
HVAC
Refrigeration
Pharmaceutical
Transportation/Cold Chain
Freezers
HACCP

FEATURES

Push-button or program to start recording
Up to 32,000 samples per record
Alarm set-points
Small compact size
Integral USB interface (no custom cable)
Interactive software (included)
Three-year battery life (battery included)
NIST Calibration (optional)
Wide temperature range: -40 to 257°F/125°C
High accuracy and repeatability
Accurate internal clock (1 minute/year)
Projected time and date of full log
Fast data retrieval
Two seconds to 24 hours sample rate

SPECIFICATIONS*

GENERAL

Record	Sample rates: user-configured 1 every 2 seconds to 1 every 24 hours Number of samples: 32,000
Record Trigger	Two independent triggers Multiple trigger modes: instantaneous, button control, on alarm, time and date (start and stop), day of the week, or on the event only
Record Mode	Fill to end of memory or cyclic, number of samples, time duration
LED	User-programmable: indication of alarms, recording, triggered
Button	User-programmable: record on/off, reset alarms, view status
Alarms	Two (2) user-programmable alarms (High or Low)
Communication	Direct USB connection via standard USB cable (included)
Software	Track-It™ Software — program device, view data (historic or real-time), export to Excel™; simple and advanced modes
Battery	1/2 AA high-temperature model TLH-5902 or equal Life: 3 to 5 years @ 1-minute sample rate
Dimensions	3.585″ L x 0.787″ diameter [91.06 mm L x 20 mm diameter]
