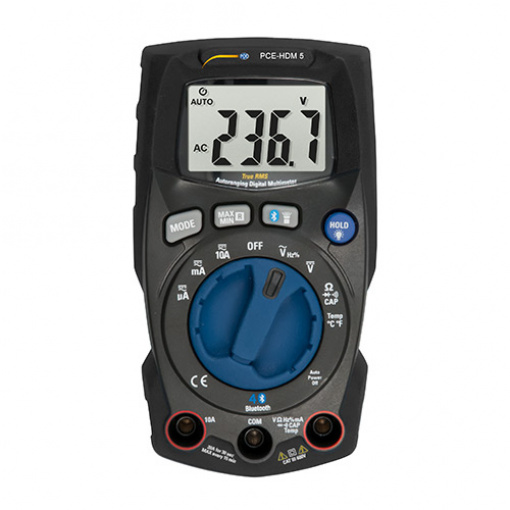

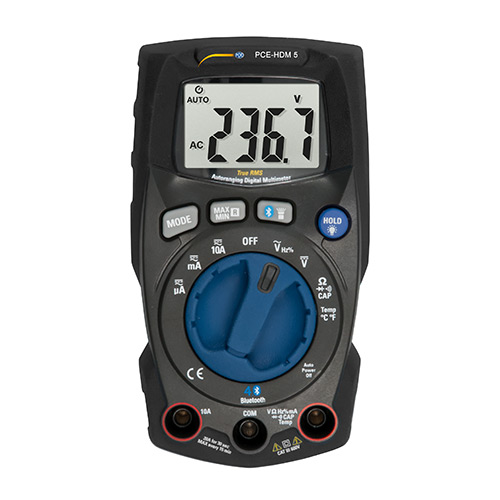

Electrical Tester PCE-HDM 5

Name: Electrical Tester PCE-HDM 5
SKU: 12386
Availability: BackOrder

PCE-HDM 5

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Electrical Tester

รายละเอียดเพิ่มเติม

Electrical Tester PCE-HDM 5
Multimeter for measuring current, voltage and resistance / Bluetooth interface / MAX function / Integrated flashlight

The handy electrical tester PCE-HDM 5 is ideally suited for beginners in electrical engineering. Due to its small dimensions, the PCE-HDM 5 electrical tester can fit in any drawer or in the glove compartment of a car. Both AC voltage and current as well as DC voltage and current can be measured with the PCE-HDM 5 electrical tester. The resistance measurement, the diode test and the continuity test are also part of the functionality of the PCE-HDM 5. The user can still use the MAX function to support the evaluation. To protect the battery, the electrical tester PCE-HDM 5 has an automatic shutdown after 15 min. inactivity integrated.

In addition to these measuring functions, the PCE-HDM 5 compact electrical tester has a Bluetooth interface that can be used to connect the electrical tester to a smartphone or tablet, which adds the possibility for the tablet to be used as a datalogger. The electrical tester also has a flashlight that can be used for measuring point lighting. Of course, the display of the electrical tester is also equipped with LED lighting, which ensures comfortable reading from the display.
– Compact electrical tester
– Bluetooth interface
– Illuminated display
– Flashlight
– Robust
– Ideal for craftsmen and service technicians

Display			6000 digit LCD
Interface			Bluetoth (available via app)
Continuity test�			Limit 50 Ω Test current < 0.5-mA
Diode test			Test current 0.3-mA open ircuit voltage <3.3 V
Refresh rate display			2 Hz
Input impedance			10 MΩ (AC / DC)
AC coupling			TRMS (50/60 Hz)
Operating conditions			5 … 40°C / 41 … 104°F, max. 80% rh
Storage conditions			-20 … 60°C / -4 … 140°F, max. 80% rh
Operating altitude			Max. 2000 m
Power supply			2 x AAA 1.5V battery
Automatic shutdown			> 15 minutes�
Security			IEC1010-1 (2001), EN61010-1 (2001) CAT III 600V Degree of pollution 2
Weight			200 g / < 1 lb
Dimensions			125 x 68 x 48 mm / 4.9 x 2.7 x 1.9 in

Technical data of the digital multimeter PCE-HDM 5
	Measuring range	Resolution	Accuracy (% v.Mw.)
Alternating current	600 μA	0.1 μA	± 2% + 5 Dgt
	6000 μA	1 μA	± 2.5% + 5 Dgt
	60-mA	0.01-mA	± 2.5% + 5 Dgt
	600-mA	0.1-mA	± 2.5% + 5 Dgt
	10 A	1 A	± 3% + 7 Dgt

Direct current	600 μA	0.1 μA	± 1% + 3 Dgt
	6000 μA	1 μA	± 1.5% + 3 Dgt
	60-mA	0.01-mA	± 1.5% + 3 Dgt
	600-mA	0.1-mA	± 1.5% + 3 Dgt
	10 A	1 A	± 2.5% + 5 Dgt

AC	6V	0.001V	± 1% + 5 Dgt
	60V	0.01V	± 1% + 5 Dgt
	600V	0.1V	± 1.2% + 5 Dgt

DC	6V	0.001 V	± 1% + 3 Dgt
	60V	0.01V	± 1% + 3 Dgt
	600V	0.1V	± 1.2% + 3 Dgt

Resistance	600 Ω	0.1 Ω	± 1% + 4 Dgt
	6 kΩ	0.001 kΩ	± 1.5% + 5 Dgt
	60 kΩ	0.01 kΩ	± 1.5% + 5 Dgt
	600 kΩ	0.1 kΩ	± 1.5% + 5 Dgt
	6 MΩ	0.001 MΩ	± 1.5% + 5 Dgt

Capacity	60 nF	0.01 nF	± 5% + 35 Dgt
	600 nF	0.1 nF	± 3% + 5 Dgt
	6 μF	0.001 μF	± 3% + 5 Dgt
	60 μF	0.01 μF	± 3% + 5 Dgt
	600 μF	0.1 μF	± 4% + 5 Dgt
	6000 μF	1 μF	± 5% + 5 Dgt

Frequency	9 Hz	0.001 Hz	± 1% + 5 Dgt
	99 Hz	0.01 Hz	± 1% + 5 Dgt
	999 Hz	0.1 Hz	± 1% + 5 Dgt
	9 kHz	0.001 kHz	± 1% + 5 Dgt

Temperature (type K thermocouple) �	-20 … 760°C	0.1°C	± 3% + 5°C
	-4 … 1400°F	0.18°F	± 3% + 9°F

Electrical Tester PCE-HDM 5
