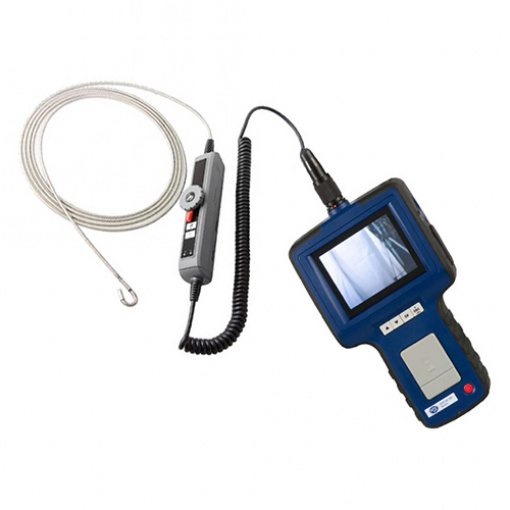

PCE-VE 355N3 Industrial Borescope
Two-way articulating inspection camera, industrial endoscope or videoscope with 8 GB SD card memory and small 4.5 mm / 0.18 in diameter cable

The PCE-VE 355N3 is a two-way articulating industrial borescope, inspection camera, industrial endoscope or videoscope for the non-destructive inspection (NDI) of small components and hard-to-reach places. The camera head features 5 LED lights with automatic illumination. Pictures and videos are saved to the included 8 GB SD card memory, allowing easy transfer to a PC.

The 3 m / 9.8 ft cable length and small 4.5 mm / 0.18 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction and heating, ventilation and air conditioning (HVAC) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***

– Flexible 3 m / 9ft 10″ cable
– Diameter camera head 4.5mm / 0.18″
– Image capture / Photos and Videos
– 2-way optics
– 8 GB SD memory card (incl.)
– Robust carrying case included

Cable diameter	4.5 mm / 0.18 in
Cable length Articulation	3 m / 9.8 ft 2-way, 90° in each direction
Depth of field	1.5 … 10 cm / 0.59 … 3.94 in
Field of view	67°
Bending radius	90 mm / 3.54 in
Illumination	5 LEDs, automatic
White balance Image sensor	Fixed CMOS
Picture rate	30 frames per second (fps)
Display	88.9 mm / 3.5 in TFT LCD monitor
Interface	Mini USB 1.1 (AV out / AV in)
Storage options	Image or video
Storage	8 GB memory card (can be increased to 32 GB)
Compression format	MPEG 4
Picture format	JPEG (640 x 480 pixel resolution)
Video output format	NTSC / PAL
Video format	ASF (320 x 240)
Operation and storage temperature	-10 … 50°C / 14 … 122°F
Voltage supply	Rechargeable 3.7V lithium-ion battery
Dimensions, handheld device	207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
Weight, incl. carrying case	450 g / 1 lb
