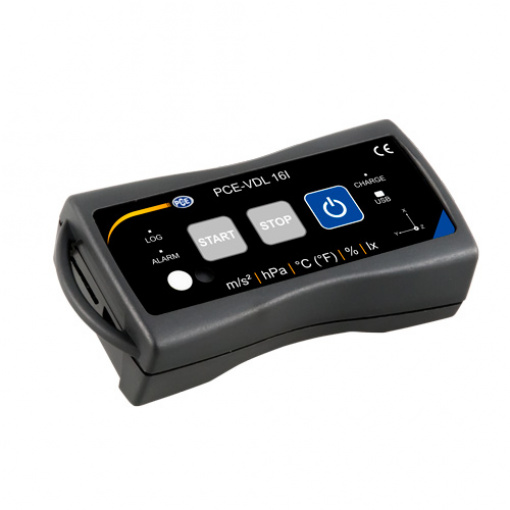

Photometer PCE-VDL 16I
With up to 800 Hz / Temperature, Humidity, Air pressure, Vibration, and Light

The photometers of the PCE-VDL series are available in two versions. The accelerometer PCE-VDL 16I contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The max. sampling rate of the acceleration sensor is 800 Hz, the remaining sensors are sampled with max. 1 Hz.

The accelerometer is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.

– 3-axis Acceleration up to 800 Hz

– For temperature, humidity, air pressure and light

– 32 GB SD memory card

– Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in

– Made in Germany

Temperature
Measuring range	-20 … 65°C / -4 … 149°F
Accuracy	± 0.2°C / ± 0.36°F
Resolution	0.01°C / 0.018°F
Max. Sampling rate	1 Hz
Humidity
Measuring range	0 … 100% r.H.
Accuracy	± 1.8% r.H.
Resolution	0.04% r.H.
Max. Sampling rate	1 Hz
Air pressure
Measuring range	10 … 2000 mbar
Accuracy	±2 mbar (750 … 1100 mbar); otherwise ± 4 mbar
Resolution	0.02 mbar
Max. Sampling rate	1 Hz
Light
Measuring range	0.045 … 188,000 Lux
Resolution	0.045 Lux
Max. Sampling rate	1 Hz
3 Axes Acceleration
Measuring range	± 16 g
Accuracy	0.24 g
Resolution	0.00390625 g
Max. Sampling rate	800 Hz
