Relative Humidity Meter PCE-G1

Relative Humidity Meter to measure relative humidity and temperature, with a large display visible from up to 50m distance

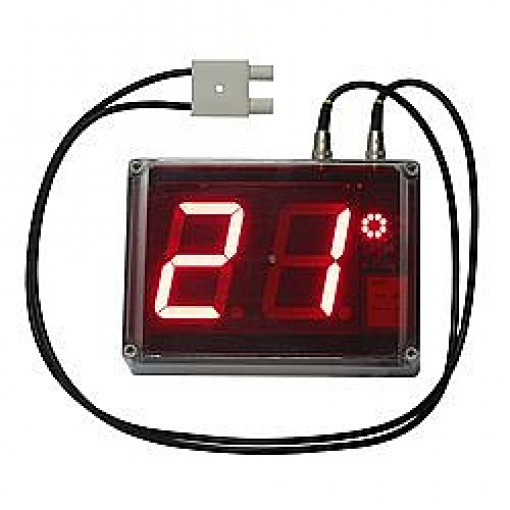

The PCE-G1 humidity detector has been designed for measuring relative humidity and temperature, with readings shown on its high visibility display. The humidity detector is composed of a 100mm high LED and comes with IP54 rating. This humidity detector has a display that will alternate values and show relative humidity for 2 seconds followed by temperature for 2 seconds. The sensor comes calibrated from the manufacturer. An optional ISO calibration and certification can be ordered separately. Easy to use, accurate, and durable.

The image shows the display installed in an warehouse. The measurement values can be seen at a distance of up to 50m away. The display connects to the combined sensor using a 1m long cable. The sensor (capacitive / PT1000) can be recalibrated and is housed in ABS plastic. Readings are displayed alternatively every two seconds.

Technical specifications
Measurement ranges relative humidity / temperature	10 to 95% r.h. / 0 to 60°C
Resolution relative humidity / temperature	1% r.h. / 1°C
Accuracy relative humidity / temperature	±2% r.h. / 1°C
Visible distance	can be read from 50m away
Sensor type relative humidity / temperature	capacitive / PT1000
Response time T90	approx. 4 seconds
Cable length (between sensor and display)	1 meter
Display	100mm high LED (alternates values)
Port	RS-232
Power	110V to 230V / 50 to 60Hz
Dimensions	Sensor: 50 x 70 x 20mm Display: 175 x 250 x 75mm
Protection	IP 54
Weight	1.3kg (with sensor and cable)
