Relative Humidity Meter converts temperature or humidity to a 4 … 20 mA signal / high precision / supply via current loop / wall mounting

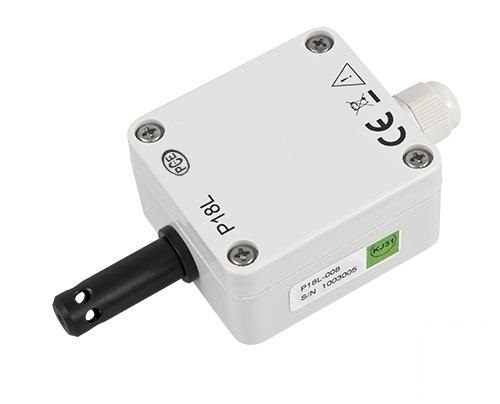

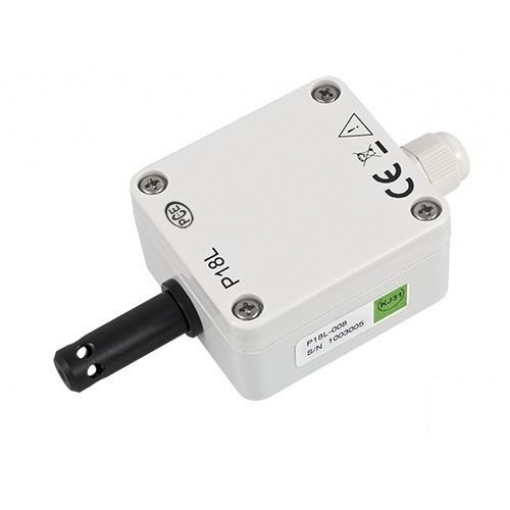

The Relative Humidity Meter PCE-P18L was developed and constructed for the permanent monitoring of temperature or humidity. The compact dimensions of the Relative Humidity Meter are the characteristics of this instrument. The measurement of the temperature and humidity is via a semiconductor component. Internally, the physical quantities to be measured are converted toa 4 … 20 mA standard signal. The power of this measuring instrument isconnected to a DC voltage into a current loop and is thus ideally suited fordisplayswith transmitter power supply. But it can also be connected to the paperless recorder for long-term monitoring of environmentalconditions.

sensor for temperature and humidity
4 … 20 mA output
easy wall mounting

for permanent monitoring
various filters available
small size

Technical Data�
Humidity
Measuring range	0 … 100 % RH
Accuracy	± 2 % (in the range 10% …. 90% RH) ± 3 % (remaining range)
Hysteresis	± 1 % RH
Temperature
Measuring range	– 20 … 60 °C
Accuracy	± 0.5 % of measuring range
Temperature effect	± 25 % / 10 °C
Output current	4 … 20 mA
Max. connectable resistor at the output	≤ 500 Ω
Supply voltage	19 V … 30 V DC
Performance	< 1.5 W
Setting the output size	via DIP – switch
Ambient temperature	– 30 °C … 85 °C
Max. humidity	≤ 95 % RH
Preheating	15 minutes
Degree of protection	IP 65
Mounting	Wall mounting
Dimensions (W x H x D)	35 x 58 x 118 mm
Weight	125 g
