Description
M-190

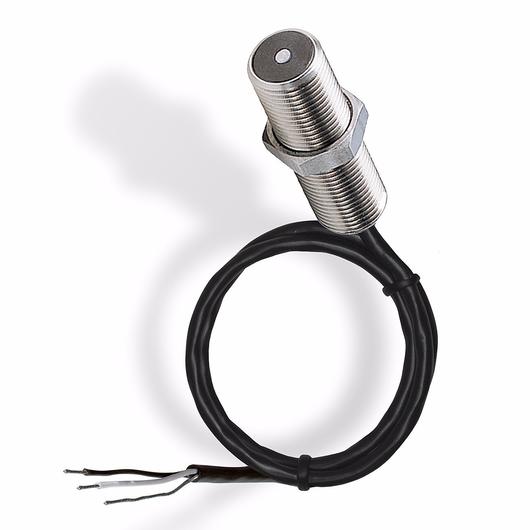

1-99,999 RPM. These self-powered gear sensors, the M-190W Magnetic Sensor and M190P Magnetic Sensor, are very popular and commonly used with 60-tooth 20 pitch gears. They mount with 0.005 in. [0.127 mm] of a 0.1 in. [2.5 mm] target and require no power from our display modules as they self-generate an AC signal.
MT-190W and MT-190P
1-99,999 RPM. Same as the M-190 Magnetic Sensors but with enhanced performance from the amplifier, which extends the operating gap to 0.25 in. [6.35 mm] from the target. Frequently used on gears, the MT-190 and MT-190W provide a 3.3 to 24VDC TTL output signal. (The MT-190W is compatible with DataChart™ DC1250.)
Specifications*
| MODEL | M-190 | MT-190 |
|---|---|---|
| Operating Distance | 0.005 in. [0.127 mm] gap for target 0.1 in. [2.5 mm] minimum | 0.25 in. [6.35 mm] gap for target 0.1 in. [2.5 mm] minimum |
| Speed Range | 1-99,999 RPM | 1-250,000 RPM |
| Operating Temperature | -100° to 225°F (-73° to 107°C) | 20° to 160°F (-6° to 70°C) |
| Power Required | Self-generating | 3.3 to 24VDC, 4 mA |
| Output Signal | 190V P-P | TTL (same as input power) |
| Standard Cable | 10 ft. [3.04 m] | 10 ft. [3.04 m] |
| Dimensions | 2.0 in. (L) x 0.625 in. [51 x 16 mm] | 2.0 in. (L) x 0.625in. [51 x 16 mm]
Amplifier: 2.65 in. (L) x 1.38 in. x 1.05 in. [67.3 x 35.0 x 26.7 mm] |
*Specifications are subject to change without notice.
