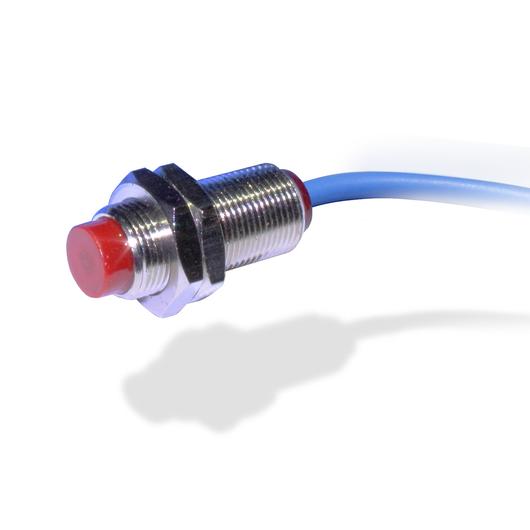

P5-11 Proximity Sensor

หมวดหมู่: Sensor

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Description

The P5-11 Proximity Sensor is a rugged industrial 2-wire probe-style inductive sensor. It can be used 0.2 in. (5 mm) from a 0.5 in. (12 mm) metallic target such as a bolt head or shaft locking key. 1-60,000 RPM

Features & Specifications*

(W= tinned wire leads, P= 1/8″ (3.5 mm) stereo phone plug termination).

MODEL	P5-11
Operating Distance	0.2″ [5 mm] from 0.5″ [12 mm] metallic target
Speed Range	1-60,000 RPM
Operating Temperature	-13° to 158°F [-25° to 70°C]
Power Required	5.0 to 24VDC, 3mA
Output Signal	NAMUR (DIN 19234)
Standard Cable	6.56 feet [2 m]
Dimensions	1.33 in. (L) x 0.55 in. [34 x 14 mm]
