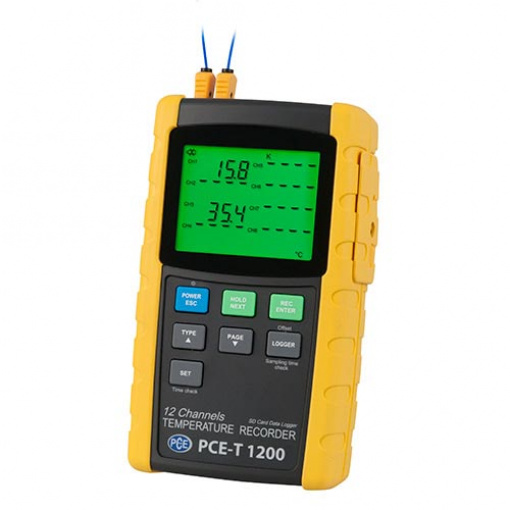

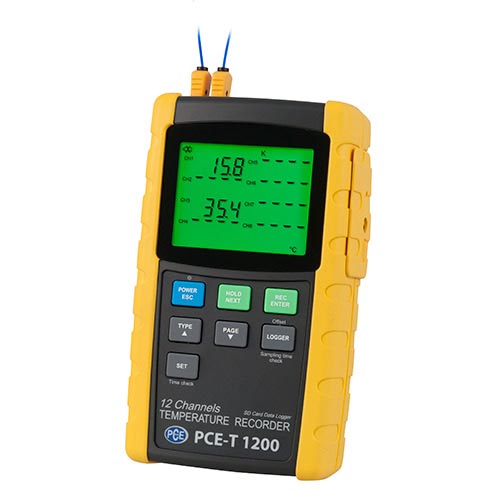

PCE-T 1200 Multi-Channel Datalogging Temperature Meter
Multichannel datalogging temperature meter with a backlit display, SD card memory and automatic temperature compensation (ATC)
PCE-T 1200 is a 12-channel temperature data logger that accommodates SD cards up to 16 GB in size. The optional software allows the temperature meter to connect to a PC via USB for direct data transfer and analysis via Microsoft Excel. The datalogging interval can be set from 1 second per channel up to a maximum of 3600 seconds. The 4.5″ LCD display features a green backlight and can indicate up to eight channels of measurements simultaneously (CH 1 … CH 8). With just the press of a button, the remaining channels (CH 9 … CH 12) can be viewed. The temperature meter works with six different kinds of transducers or sensors including type K, type J, type T, type E, type R and type S thermocouples.
– 12-channel datalogger for temperature (°C / F)
– Includes 2 Type K sensors 1-meter in length
– 4.5″ graphic LCD display (82 x 61 mm / 3.2 x 2.4 in)
– Adjustable data recording timer interval
– Compatible with 6 different types of thermocouples
– High and low alarm for each inputbr/> – Indication of maximum and minimum values
– Accommodates up to 16 GB SD memory card to save measured data
– Integrated calendar
– Automatic temperature compensation (ATC)
– Hold function to freeze the values indicated
– Integrated stand
| |||||||||||||||||||||||||||||||||||||||||||
Power consumption (lights off / logging off) | 7.5-mA | ||||||||||||||||||||||||||||||||||||||||||
Power consumption (lights off / logging on) | 25-mA | ||||||||||||||||||||||||||||||||||||||||||
Dimensions | 225 x 125 x 64 mm / 8.9 x 4.9 x 2.5 in | ||||||||||||||||||||||||||||||||||||||||||
Weight | 827 g / 1.8 lbs (excl. battery) | ||||||||||||||||||||||||||||||||||||||||||
Operation conditions | 0°C … 50°C / 32 … 122°F, 85% rH |
