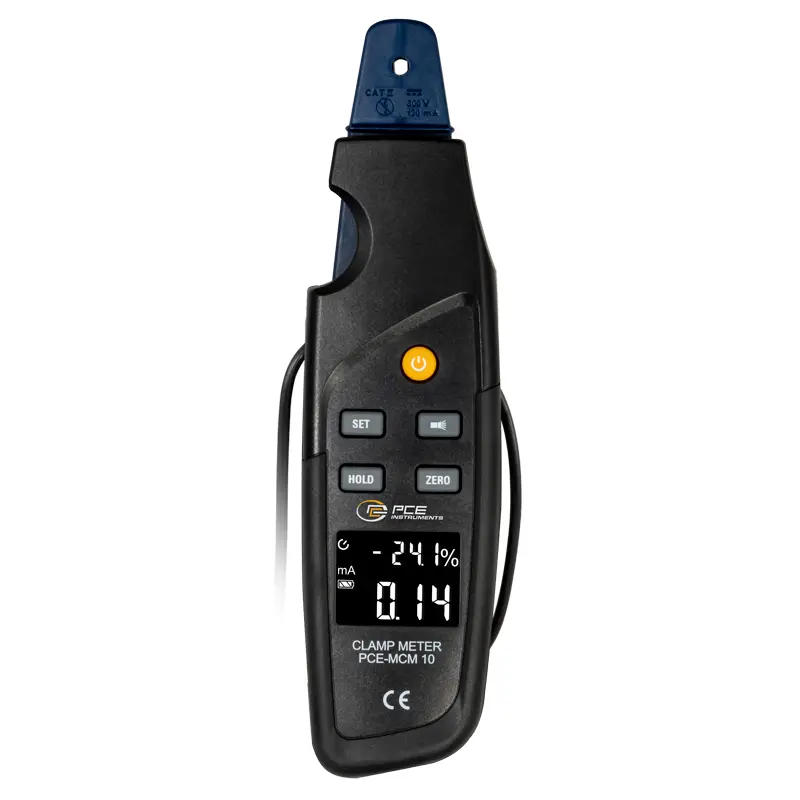

PCE-MCM 10 Clamp Meter

The process clamp meter has a measurement range of ±99.9 mA DC. With an accuracy of 0.3% of rdg. +8 digits, the process clamp meter is a particularly accurate measuring instrument. In order to conveniently perform measurements with the process clamp meter, the current clamp itself is connected to a 1 meter / 3.3 ft cable. The current clamp can thus be attached to the cable to be measured. The process clamp meter can be conveniently placed aside at the workplace. This leaves both hands free while reading the measured values, for example to carry out adjustments or configurations on the process technology. Due to the high accuracy and the external sensor, the process clamp meter is ideally suited to make quick and reliable current measurements when process signals are involved.

In order to carry out a current measurement, the current clamp of the process clamp meter must be clamped around the cable to be checked. This allows the process clamp meter to measure the flowing current inductively. This has the particular advantage that a current measurement can be carried out during operation with the process clamp meter.

For improved visibility, the process clamp meter is equipped with an LED. With the LED of the process clamp meter, the measuring spot can be ideally illuminated. Optionally, the process clamp meter can be delivered with an ISO calibration certificate.

If you have any further questions about the PCE-MCM 10 process clamp meter, please take a look at the following technical data or use our contact form. Our technicians and engineers will be happy to advise you on the process clamp meter or any other products in the fields of control, laboratory or measuring technology or scales and balances from PCE Instruments.

Measuring range	±20.99 mA DC
Resolution	0.01 mA
Accuracy	±(0.3 % of rdg. + 8 Digits)
Measuring range	±21.0 … ±99.9 mA DC
Resolution	0.1 mA DC
Accuracy	±(1 % of rdg. + 8 Digits)
Influence of the earth’s magnetic field on the measured value, max. 0.25 mA DC
Diameter of clamp opening	Ø5 mm
Switch-off	automatic
Continuously switched on	after 10 minutes OFF
Operating voltage	3V via 2 AA batteries
Battery life	approx. 40 hours
Protection class	IP40
Overvoltage categories	CAT II 300V
Operating conditions	-10 … 50°C / 14 … 122°F
Storage conditions	-15 … 60°C / 5 … 140°F
Environmental humidity	<90% RH at < 30°C / 86°F
	<75% RH at 30 … 50°C / 86 … 122°F
Working altitude	0 … 2000 m / 6,561 ft above sea level
Dimensions	handheld device: 180 x 55 x 39 mm / 7.1 x 2.2 x 1.5 in
	current clamp: 90 x 40 x 1.5 mm / 3.5 x 1.6 x 0.06 in
	cable length: approx. 1 m / 3.3 ft
Weight	268 g / 0.6 lbs with batteries inserted
