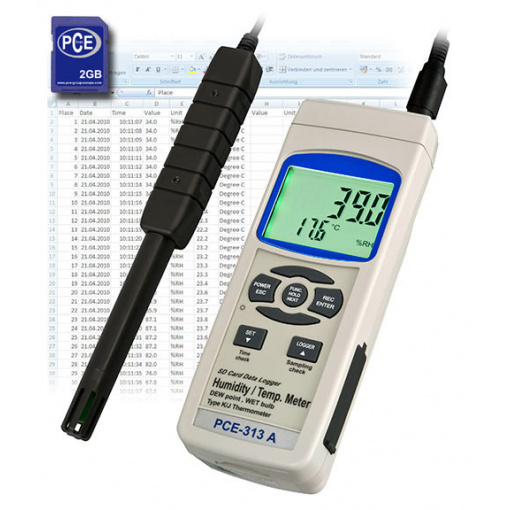

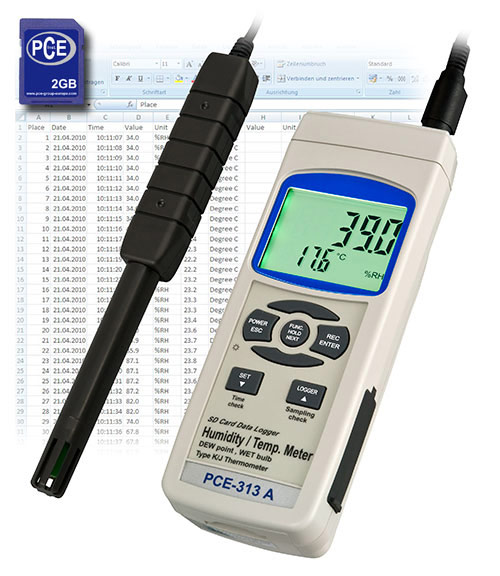

PCE-313A Temperature Meter
Measures ambient temperature from -20 … 60°C (-4 … 140°F) and relative humidity from 0 … 100% RH / Integrated data logger with adjustable sampling rate and SD card memory
PCE-313A is a combination thermometer hygrometer used to measure the relative humidity (% RH) and temperature (°C / °F) of the air. Ideal for use in evaluating heating, ventilation and air conditioning (HVAC) system performance, this digital temperature and humidity meter also has a port for connecting a type-K thermocouple. This allows the user to take surface temperature measurements using an optional external type-K temperature probe (not included – see accessories).
The thermo hygrometer features a built-in data logger capable of recording humidity and temperature measurement data at an adjustable sampling rate in direct mode or permanently in data logging mode. To use these functions, you must program the meter in advance using the keypad. For permanent or long-term recording applications, we recommend powering the meter using an optional AC power adapter (see accessories for details). The device also comes with an SD card memory of up to 16 GB to enable long-term data acquisition as well as quick and easy transfer of the stored data to a PC for analysis via Microsoft Excel (.xls files saved to SD card).
connection
– Flexible real-time data memory by means of SD memory card (1 … 16 GB)
– The data can be saved to the SD card directly as an Excel file
– The SD card can be formatted while it is inside the device
– Data hold function
– External sensor for easy and flexible measurement of the environmental conditions
– Low battery indication
– Large LC display
– Tripod connection
– Adjustable sampling rate of 1 … 3600 seconds
– Easy to use
– Resilient case
– 2 GB SD card included in the delivery
– Optionally available software kit for online transfer to a PC or laptop (please note that no software is
necessary to analyse the saved data)
