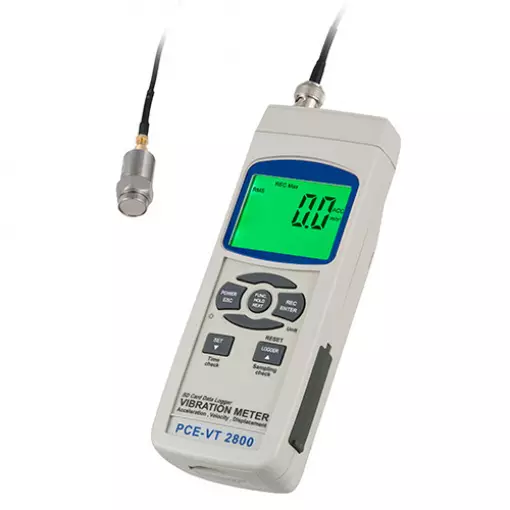

PCE-VT 2800 Vibration Meter
Measures acceleration, oscillation and shift / True-RMS (TRMS), max-hold, data-hold and peak-value functionality / SD memory
The PCE-VT 2800 measures acceleration, oscillation speed and shift of vibrating parts, machines and equipment. The device features an integrated data logger to record vibration measurements over time. Measurement data is stored on an SD card memory and can be transferred directly to a PC via USB or RS-232 interface.
The device also includes features such as the data hold and data release functions (accessed in RMS mode), allowing you to freeze displayed values and show maximum and minimum values respectively. The device menu offers settings such as time / date, automatic power off, beep-tone switch, sampling rate adjustment and formatting of the SD memory card.
**AC power adapter, ISO calibration certificate, and data evaluation software with USB cable sold separately. See accessories for details**
- Frequency range: 10 Hz … 1 KHz
- True-RMS (TRMS), max-hold, data-hold and peak-value functionality
- Adjustable sampling rate, automatic power off and time / date
- Power supply via battery or electric power (power adapter sold separately – see accessories)
- Backlit LCD screen
- Accommodates SD cards 1 … 16 GB
Technical specifications | |
Frequency range | 10 Hz … 1 KHz |
Sampling time | Auto / manual, adjustable |
Data storage | 1 GB … 16 GB SD memory card |
Data error | ≤ 0.1 % of all stored data |
Data output | RS-232 interface / USB port |
Sampling time (display) | Approx. 1 second |
Display | LCD (52 x 38 mm / 2.05 x 1.50″), green background light |
Operating conditions | 0 °C … +50 °C / +32 °F … 122 °F; < 85% relative humidity (RH) |
Power supply | Alkaline battery 1.5 V DC (UM3, AA) or equivalent (electric power adapter sold separately – see accessories) |
Weight | 0.52 kg / 1.1 lbs |
Dimensions | 203 x 76 x 38 mm / 8.0 x 3.0 x 1.5″ |
Acceleration | |
Measurement functions | TRMS, max hold, peak |
Measurement range | 0.5 m/s² … 199.9 m/s²; 0.05 g … 20.39 g; 1.6 ft/s² … 656 ft/s² |
Resolution | 0.1 m/s²; 0.01 g; 0.3 ft/s² |
Accuracy | ± 5% + 5 digits from measured value at 160 Hz, 80 Hz, 23 ± 5 °C |
Calibration point | 50 m/s²; 164 ft/s² (160 Hz) |
Speed | |
Measurement functions | TRMS, max hold, peak |
Measurement range | 0.5 m/s … 199.9 m/s; 50 cm/s … 20000 cm/s; 20.0 in/s … 7.9 in/s |
Resolution | 0.1 m/s; 0.01 g; 0.3 ft/s |
Accuracy | ± 5% + 5 digits from measured value at 160 Hz, 80 Hz, 23 ± 5 °C |
Calibration point | 50 mm/s; 2.0 in/s (160 Hz) |
Shift | |
Measurement functions | Peak to peak (p-p); max hold p-p |
Measurement range | 1.999 mm; 0.08 in |
Resolution | 0.001 mm; 0.00004 in |
Accuracy | ± 5% + 5 digits from measured value at 160 Hz, 80 Hz, 23 ± 5° C |
Calibration point | 0.141 mm; 0.006 in (160 Hz) |
