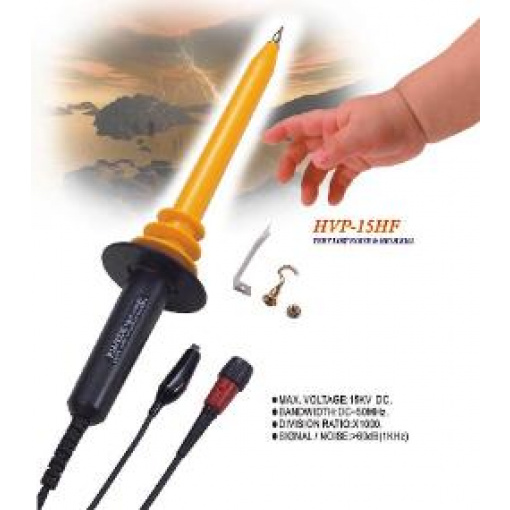

Oscilloscope Probe

• Max. Working Voltage:
  DC: 0 ~ 15KV DC
  AC: Pulse < 30KV Peak to Peak
  AC: Sine Ware <= 10KV rms
• Singal / Noise: >= 60dB (1KHZ), >= 50dB (1MHz)
• Bandwidth: DC ~ 50MHz (-3dB)
• Division Ration: 1:100 Rise Time <= 7ns
• Input Resistance: 100M Ohm +/- 0.5%
• Input Capacitance : 3.0PF +/- 0.5PF
• Compensation Range : 5PF ~ 50PF
• Cable Length: 2.0 Meter (+/- 0.2M)
• Temperature Cofficient: <= 200PPM/Degree C
• DC Accuracy: <= 0.7%
• Safety Approval: CE, GS, UL, CUL
• Operating Temperature: 0 ~ 50 Degree C
• Storage Temperature: – 20 ~ 70 Degree C
• Weight: 250 g
• Dimension: 75 Dia * 340 mm Length
