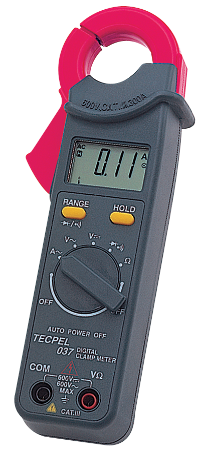

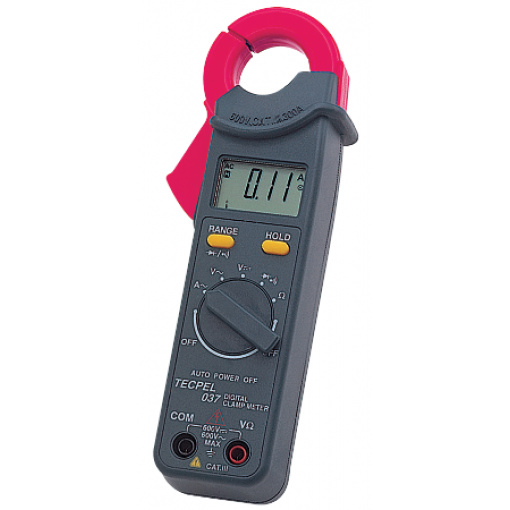

Digital Clampmeter DCM037

Model : DCM 037   Features :

• 3 3/4 digit, 3400 Count display

• Analog bar graph

• AC current up to 300A

• AC/DC Voltage up to 600V

• Resistance up to 34MΩ

• Data hold function

• Audible continuity test

• Overload protection

• Confirm to IEC-1010-1 and IEC1010-2-031,CAT lll 600V

• . Hand guard protection

DCM-037 Specificaitons:
DC Voltage Ranges: 340mA,3.4V,34V,340V,600V,±(1.0%+1dgt)
AC Voltage Ranges: 340mA,3.4V,34V,340V,600V, ±(2.0%+4dgts) 50~500Hz
AC Current Ranges: 34A,300A, ±(3.0%rdg+5dgts) 50~60Hz
Resistance Ranges: 340Ω,3.4kΩ, 34kΩ,340kΩ,3.4MΩ,34MΩ ±(1.5~4.0%+4dgts)
Continuity Test: Audible indication:<40Ω;Diode Test Current:1.0mA
Power Requirement: One 9V battery
Dimensions: 6.9″x1.8″x1.7″ (177x45x43mm)
Weight: 7 oz(200g)
Accessories: Test leads; carrying case, battery, and owners manual.
Certificate: CE
