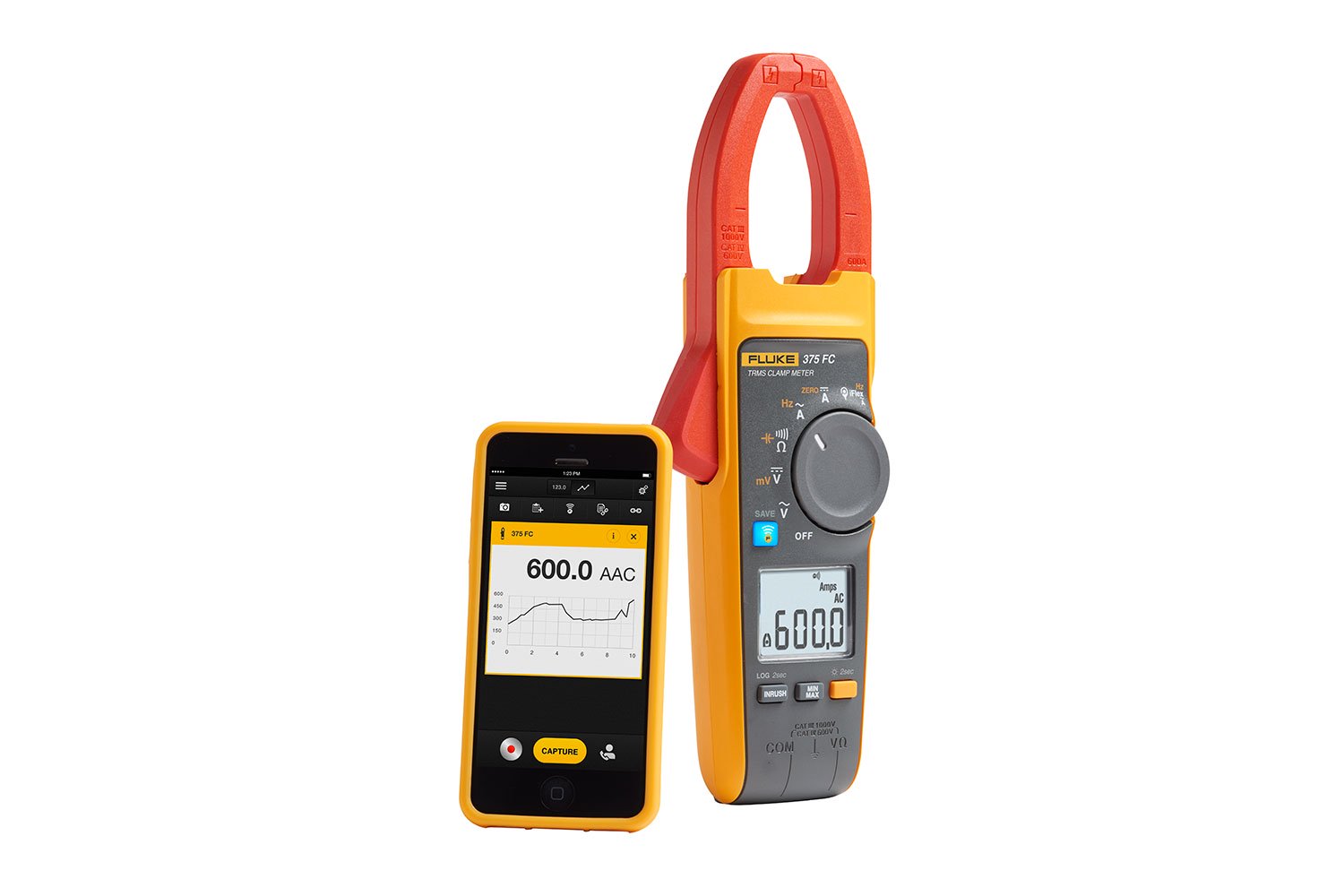

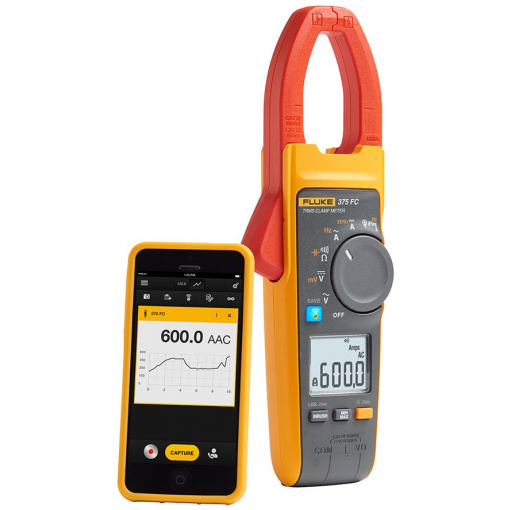

Fluke 375 FC True-RMS AC/DC Clamp Meter

Name: Fluke 375 FC True-RMS AC/DC Clamp Meter
SKU: 6846
Price: 24015.51 THB
Availability: InStock

ราคาพิเศษ ฿22,444.40 excl VAT

฿24,015.51 incl VAT

Availability : In Stock

หมวดหมู่: แคลมป์มิเตอร์

รายละเอียดเพิ่มเติม

Specifications: Fluke 375 FC True-RMS AC/DC Clamp Meter

General Specifications
AC Current via Jaw
Range	600.0 A
Resolution	0.1 A
Accuracy	2% ±5 digits (10 Hz to 100 Hz)
	2.5% ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz)	3 @ 500 A
	2.5 @ 600 A
	Add 2% for C.F. >2
AC Current via Flexible Current Probe
Range	2500 A
Resolution	0.1 A (≤ 600 A)
	1 A (≤ 2500 A)
Accuracy	3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)	3.0 at 1100 A
	2.5 at 1400 A
	1.42 at 2500 A
	Add 2% for C.F. > 2
Position Sensitivity

	i2500-10 Flex	i2500-18 Flex
A
Distance from Optimum	0.5 in (12.7 mm)	1.4 in (35.6 mm)
Error	±0.5 %	±0.5 %
B
Distance from Optimum	0.8 in (20.3 mm)	2.0 in (50.8 mm)
Error	±1.0 %	±1.0 %
C
Distance from Optimum	1.4 in (35.6 mm)	2.5 in (63.5 mm)
Error	±2.0 %	±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range	600.0 A
Resolution	0.1 A
Accuracy	2% ±5 digits
AC Voltage
Range	1000 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1000 V)
Accuracy	1.5% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range	1000 V
Resolution	0.1 V (≤600.0 V)
	1 V (≤1000 V)
Accuracy	1% ±5 digits
mV dc
Range	500.0 mV
Resolution	0.1 mV
Accuracy	1% ±5 digits
Frequency via Jaw
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ±5 digits
Trigger level	5 Hz to 10 Hz, ≥10 A
	10 Hz to 100 Hz, ≥5 A
	Frequency via Flexible Current Probe
Range	5.0 Hz to 500.0 Hz
Resolution	0.1 Hz
Accuracy	0.5% ±5 digits
Trigger level	5 Hz to 20 Hz, ≥25 A
	20 Hz to 100 Hz, ≥20 A
	100 Hz to 500 Hz, ≥25 A
Resistance
Range	60 kΩ
Resolution	0.1 Ω (≤600 Ω)
	1 Ω (≤6000 Ω)
	10 Ω (≤60 kΩ)
Accuracy	1% ±5 digits
Capacitance
Range	1000 μF
Resolution	0.1 μF (≤ 100 μF)
	1 μ F (≤ 1000 μF)
Accuracy	1% ±4 digits
Mechanical Specifications
Maximum voltage between any terminal and earth ground	1000 V
Batteries	2 AA, NEDA 15A, IEC LR6
Operating temperature	-10 °C to +50 °C
Storage temperature	-40 °C to +60 °C
Operating humidity – non-condensing (< 10°C)	≤90% RH (at 10 °C to 30 °C)
	≤75% RH (at 30 °C to 40 °C)
	Operating altitude	3000 m
Storage altitude	12,000 m
Size (L x W x H)	249 x 85 x 45 mm
Weight	395 g
Jaw opening	34 mm
Flexible current probe diameter	7.5 mm
Flexible current probe cable length (head to electronics connector)	1.8 m
Safety	IEC 61010-1, Pollution Degree 2
	IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
	IP rating	IEC 60529: IP30, non-operating
	Radio Frequency Certification FCC ID	T68-FBLE IC:6627A-FBLE
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2
	CISPR 11: Group 1, Class A
	Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
	Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purpose. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
Korea (KCC)	Class A Equipment (Industrial Broadcasting & Communication Equipment)
	Class A: Equipment meets requirements for industrial electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Temperature coefficients	Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C
