Power analyzer for monitoring of 3-phase network parameters / programmable / analogue output / modbus interface / DIN rail mounting

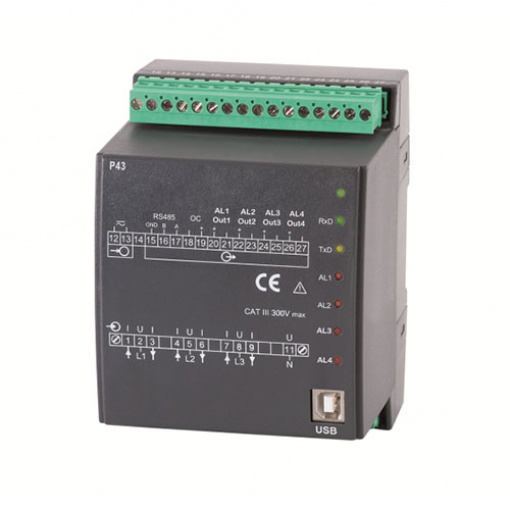

The power analyzer PCE-P43 is designed to take measurements and transfer measurement data of 3-phase power networks. The power transducers can be connected to symmetrical and asymmetrical systems. With thepower transducer currents can be measured directly, or indirectly through the transducer. It is possible to set the current transformer ratios of the power transducer via software. The complete setup of the power transducer is via front-mounted USB port. The measured values are converted by the power measuring transducer into a standard signal and transmitted via Modbus.The installation of the power transducer is on a DIN rail. In addition to the analogue data transfer from the power transducer, the power measuring transducer can via the built-in relays and alarms alert the user when under or in excess of a load. The power transducer can be used everywhere, where durable 3-phase networks need to be monitored. Application of the power transducer is especially�useful in the area of energy management.
– easy mounting on DIN rail – pulse output, alarm relay – current or voltage output – direct and indirect measurement
– adjustable via USB – RS485 modbus interface – measurement memory – freely programmable
