Gas Leak Detector Xgard-IR-1

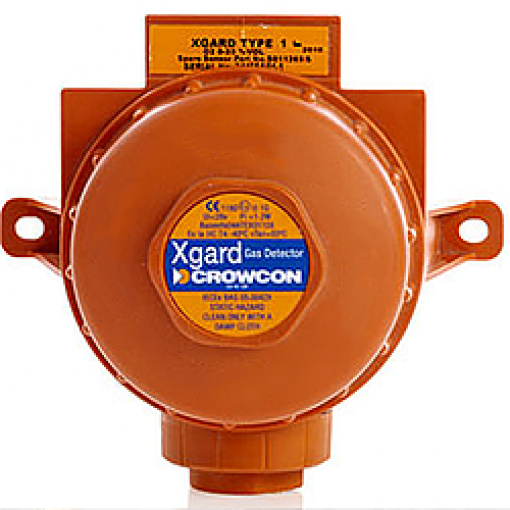

Xgard-IR-1 Single-Gas Gas Leak Detector
warning for gases (Carbon Dioxide, CO₂, 0 … 5 %) / features display and signal output / with ATEX or UL approval

Here you can find an ATEX or UL approved Gas Leak Detector for flammable gases (ex), oxygen and toxic gases for fixed mounting. These Gas Leak Detectors vary by the type of gases they measure, functionality (e.g. analogue output, relay output) or the type of indicator – there are sensors with a built-in screen (as an indicator) or without. You can choose a Gas Leak Detector for almost any type of gas: methane, propane, butane, pentane, LPG, ethanol, ethylene, nitrogen, acetylene, benzene (lead), phosphine, oxygen, ozone, carbon monoxide, carbon dioxide, hydrogen sulfide, sulfur dioxide, chlorine, ammonia (sensors for other types of gases can be requested). A Gas Leak Detector without a display (Xgard) are used in combination with an external indicator or a facility to detect gases, e.g. with the Gasmaster. Gas Leak Detectors that operate without internal alarm relay can be used in conjunction with the GasFlag distributor.

Gas sensors
The series of sensors Xgard, TXgard, and Flamgard is always delivered calibrated and registered. By default, the sensor is delivered calibrated to methane. Please consult us for other types of calibration.

GasFlag
We offer the GasFlag for sensors without alarm relay. It is a small box for fixed installation without a display for signals for the input of 4… 20-mA. Its output has two alarm relays (max. 1 to 30V DC). The status is displayed through the LED, and it is powered to 230V.

Gasmaster
The Gasmaster is a power station of gas detection with a large display. There are several versions: 1 and 4 channels as well as with or without an interface for the PC. The Gasmaster also possesses an alarm relay with which light signals or ventilators can be activated. The systems of the Gasmaster and the gas sensors are delivered configured, calibrated and verified.

– Stationary
– For (Carbon Dioxide, CO₂, 0 … 5 %)
– Additional display and alarm station
– ATEX or UL approval





Technical Specifications for the Xgard series sensors

Gas sensor type Xgard-Type 1 Xgard-Type 5 TCgard EX Zone 0, 1, 2 1, 2 1, 2 Types of gases to detect with corresponding measurement range (you will find the required order code for the types of gases in the online store) O2 0 … 25 vol% H2 0 … 2000 ppm 0 … 4 vol% = (100% LEL) CO 0 … 250 ppm H2S 0 … 25 ppm H2S 0 … 25 ppm CL2 0 … 5 ppm O3 0 … 1 ppm SO2 0 … 10 ppm PH3 0 … 1 ppm NH3 0 … 50 ppm 0 …100 % UEG inflammable gases (methane, procloth, butane, pentane, LPG, ethanol, ethylene, etc.) By default, the sensor is delivered calibrated to methane. Please consult us for other types of calibration. Methane 0 … 100 vol% CO2 0 … 100 vol% He 0 … 100 vol% Accuracy ± 3% ± 3% ± 3% Display – – – – – – – – – Signal output 2 conductors 4-mA … 20-mA 3 conductors 4-mA … 20-mA 3 conductors 4-mA … 20-mA Alarm/control relays – – – – – – – – – Norms ATEX or UL ATEX or UL ATEX or UL Power supply 8 … 30V DC / 24-mA 8 … 30V DC / 24-mA 8 … 30V DC / 24-mA Temperature range -20°C … +50°C -4°F … +122°F -40°C … +55°C -40°F … +131°F +10° C … +55°C +50°F … +131°F Weight approx. 1 kg / 2.2 lbs approx. 1 kg / 2.2 lbs approx. 1 kg / 2.2 lbs

Technical Specifications of the Xgard IR series gas sensors (with infrared measuring)

Optional components for the Xgard IR Xgard IR (infrared) Gas sensor type The response time of infrared gas sensors is T90 < 30 s and zero drift is approx. ± 2% per month. For highly accurate measurements and protecting the sensors exterior, there are some optional protectors. Depending on the installation site, the protector against sunlight may be the perfect option. If the sensors are mounted outside (in the open field) or in halls and pavilions that are frequently cleaned with water or disinfected from time to time, we recommend the water deflector protector. When the sensor is mounted in high humidity environments or offshore applications and vessel installations, we recommend the gas sensor with the cap resistant to rain. The cone collector is often used when you need to detect light gases (e.g. methane). This facilitates the entry of the gas into the sensor. If you have any questions, contact us: +44 ( 0 ) 2380 98703 0 Advantages to the conventional gas sensors: The great advantage of infrared gas sensors is their long life ( > 5 years) and almost inexistent long-term drift. This grealty lowers the cost of calibration. In addition, the sensors have a full temperature compensation. The ATEX, IECEx and UL norms allow them to be used worldwide. EX Zone 1, 2, 21 / 22 Types of gases to detect with the corresponding range of measurement (you will find the required order code for the types of gases in the online store) CO2 0 … 2% CO2 0 … 5% (according to sensor) 0 … 100% LEL inflammable gases (Methane, propane, butane, pentane, LPG, ethanol, ethylene) Accuracy ±2% (the whole range) Display —- Output signal 3 conductors 4-mA … 20-mA Alarm / control relays —- Norms ATEX actual or UL Protection IP65 / IP66 with cap resistant to inclement weather Power supply 10V … 30V DC / 50-mA Temperature range -20ºC … +50ºC -4ºF … +122ºF Dimensions 156 mm x 166 mm x 111 mm / 6.1 in x 6.5 in x 4.4 in Weight 1 kg / 2.2 lbs (aluminium housing)

Technical Specifications of the TXgard series gas sensors

Gas sensor type TXgard IS+ TXgard Plus Flamgard Plus EX Zone 0, 1, 2 1, 2 1, 2 Types of gases to detect with the corresponding range of measurement (you will find the required order code for the types of gases in the online store) O2 0 … 25 vol% CO 0 … 500 ppm H2S 0 … 50 ppm O3 0 … 1 ppm NH3 0 … 100 ppm Cl2 0 … 10 ppm H2 0 … 2000 ppm HCN 0 … 25 ppm PH3 0 … 2 ppm O2 0 … 25 vol% H2S 0 … 50 ppm CO 0 … 500 ppm ETO 0 … 10 ppm 0 … 100% UEG inflammable gases Acetylene (C2H2), ammonia (NH3), butane (C4H10), ethanol (C2H5OH), ethane (C2H6), ethylene (C2H4), hexane (C6H14), hydrogen (H2), LPG, methane (CH4), methanol (CH3OH), pentane (C5H12), steam oil, propane (C3H8), propanol (C3H8O) Accuracy ±3% ±3% ±3% Display yes yes yes Output signal 2 conductors 4-mA … 20-mA 3 conductors 4-mA … 20-mA 3 conductors 4-mA … 20-mA Alarm / control relays – – – yes yes Norms ATEX or UL ATEX or UL ATEX or UL Power supply 11V … 30 V DC / 20-mA 10V … 30 V DC / 210-mA 10V … 30V DC / 210-mA Temperature range -20°C … +50°C -4°F … +122°F -10°C … +55°C +14°F … +131°F -10°C … +55°C +14°F … +131°F Weight 0.7 kg / 1.5 lbs 2.2 kg / 4.9 lbs 2.2 kg / 4.9 lbs

Technical Specifications for the Gasflag

Warning station without display to connect one of the above sensors. This unit is usually mounted on the wall. When it exceeds the threshold value, it emits an alert tone and flashes a red alarm LED. A relay output can, for example, be connected to an omnidirectional illumination. The response time of the alarm is less than 1 sec. Threshold values can be adjusted. The alarm station is almost always used with a gas sensor. When it is not desired then the sensor itself makes the indication, and the alarm sounds. Sensor connection 1 sensor can be connected, 2 or 3 conductors Input 4-mA … 20-mA Output Relay output with maximum 1 A, i.e. useful for multidirectional illumination Sensor connection 2 or 3 conductors / 4-mA … 20-mA LEDs indication Operating availability: green LED Difficulty: amber LED Limit is exceeded: 2 red LEDs Display – – – Operating temperature range -20°C … +70°C -4°F … +158°F Operating humidity range 0 … 99% R.H. non-condensed Power supply 13V … 28V DC Colour RAL7035 Housing ABS plastic Dimensions 210 mm x 145 mm x 46 mm / 8.3 in x 5.7 in x 1.8 in Weight 0.5 kg / 1.1 lbs Norms EN 50270/EMC Protection IP 20

Technical Specifications for the Gasmaster (1 – 4 gas sensors)

Digital display and control panel for gas sensors described above. There are two Gasmaster models: GM 1 for a GM sensor, and 4 for up to 4 sensors (shows 4 values at one time). In addition to the standard analogue output, both types are available with an RS 232 data interface. The device also has relay outputs to activate a multidirectional light. The housing of the apparatus is protected against dust and splashing water. The unit is standard equipped with a battery so it will continue operating in case of a power failure. Model GM 1 GM 4 Sensors inputs 1 input for one of the gas sensors 4 inputs for 4 gas sensors Outputs – 1 relay output (250 VAC/8 A) – 1 analogue output (4 … 20-mA) – 1 RS 485 digital – 1 RS 232 digital -optional – 4 relay outputs (250 VAC/8 A) – 4 analogue outputs (4 … 20-mA) – 1 RS 485 digital – 1 RS 232 digital-optional Memory for 300 events (alarms, system errors, settings adjustments) Indicators – digital display for gas in ppb, ppm or % -backlight -alarm LED, availability of uses and errors – digital display for 4 gases in ppb, ppm or % -backlight -alarm LED, availability of uses and errors Alarm indicators Sound: 85 dB sharp beep Visual: alarm LED Operating temperature range -10°C … +50°C +14°F … +122°F Operating humidity range 0 … 95% H.r. (non-condensed) Power supply 90V … 264 VAC / 50 Hz … 60 Hz Battery 1.2 Ah Housing Steel exterior / ABS front panel Dimensions 288 mm x 278 mm x 10 mm / 11.3 in x 10.9 in x 0.4 in Weight 4.5 kg / 9.9 lbs Norms EN 50270 (EMC), EN 61010-1 low voltage Protection IP 54
