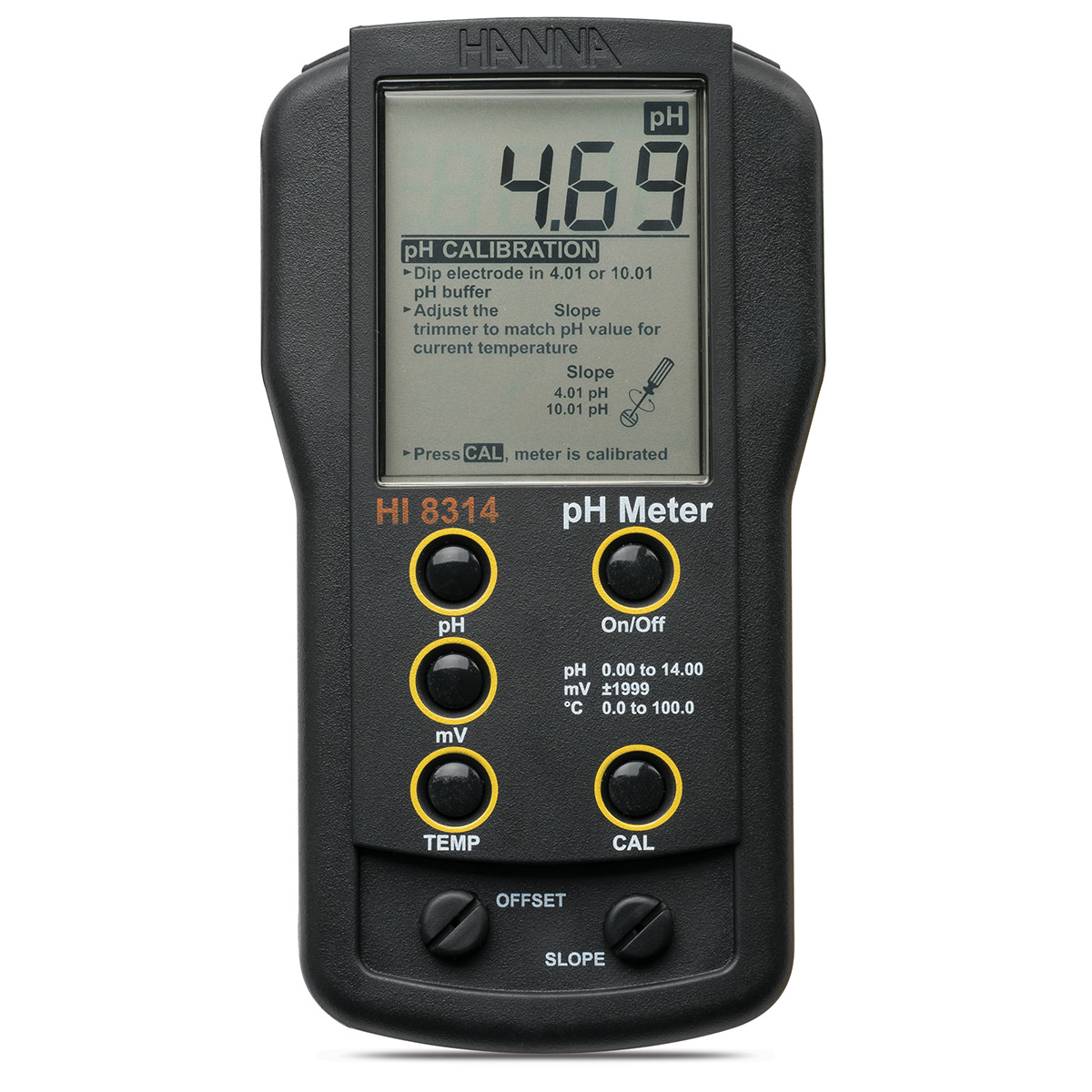

HI8314 Analog pH/mV/°C meter with HI1217D electrode

The HI8314 are portable pH/mV meter designed to be accurate, reliable and easy to use. The HI8314 uses the HI1217D preamplified pH electrode with built-in internal temperature sensor.

• Automatic Temperature Compensation (ATC)
• Two-point Calibration
• Water-resistant : Compact, heavy-duty casing
• Battery indicator : Low battery indicator
• Auto shut-off

• pH Range	0.00 to 14.00 pH
  pH Resolution	0.01 pH
  pH Accuracy	±0.01 pH
  pH Calibration	Manual, 2 point, through trimmers
  pH Temperature Compensation	Automatic, 0 to 100°C (32 to 212°F)
  pH Input impedence	10¹² Ohms
  mV Range	±1999 mV
  mV Resolution	1 mV
  mV Accuracy	±1 mV
  Temperature Range	0.0 to 100.0°C; 32.0 to 212.0°F
  Temperature Resolution	0.1°C; 0.1°F
  Temperature Accuracy	±0.4°C; ±0.8F (excluding probe error)
  Temperature Compensation	automatic, 0 to 70°C (32 to 158 °F)
  pH Electrode	HI1217D PEI body, preamplified pH electrode with internal temperature sensor, DIN connector and 1 m cable (included
  Automatic Shut-Off	after 8 minutes of non-use
  Battery Type/Life	9V / approximately 100 hours of continuous use
  Environment	0 to 50°C (32 to 122°F); RH max 95% non-condensing
  Dimensions	145 x 80 x 36 mm (5.7 x 3.1 x 1.4’’)
  Weight	230 g (8.1 oz.)
  Ordering Information	HI8314 is supplied with HI 1217D pH electrode, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachets (2), calibration screwdriver, battery, protective case and instructions.
