Vibration Analyzer Laser Shaft Alignment Tool PCE-TU 3

PCE-TU 3 Vibration Analyzer Laser Shaft Alignment Tool
Prevent premature failure of couplings, bearings and mechanical seals

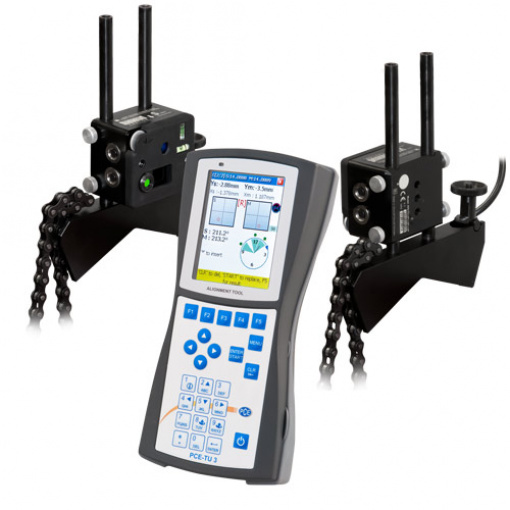

PCE-TU 3 is a vibration analyzer laser shaft alignment tool designed to aid in aligning rotating equipment (e.g., electric motor and direct-coupled machine) shafts to prevent premature failure of couplings, bearings and mechanical seals. PCE-TU 3 also helps you detect and correct soft foot to avoid costly downtime.

The PCE-TU 3 alignment tool features two red laser sensors that can be fixed to a shaft. This class 2 laser system has a typical wavelength of 670 nm, < 1 mW capacity, and maximum radiation energy of 0.1 mJ per impulse. The class 2 laser meets applicable ANSI, BS 4803, IEC 825 and US FDA requirements.

– Features two red class 2 laser sensors
– Maximum 10 m / 32.8 ft distance between sensors
– Horizontal alignment in every position from 60° … 360°
– Vertical alignment
– Auto sweep mode
– Adjustable tolerances
– Tilt (incline) measurement
– Thermal growth
– Spacer simulation
– PDF reports
– USB data transfer (optional Bluetooth adapter)
– 2 GB internal memory





Max. distance	10 m / 32.8 ft between sensors
Accuracy	±1 % + 0.01
Resolution	0.001 mm
Display resolution	0.01 or 0.001 mm
Sensor type	Position-sensitive photo diodes, approx. 10 x 10 mm / 0.4 x 0.4″
Laser type	Visible, red, 635 … 670 nm, < 1 mW
Tilt (incline) resolution	0.1 °
Interface	USB standard, Bluetooth optional
Memory	2 GB data, internal
Operating temp. range	-10 ° … +55 °C / +14 … +131 °F
Power supply	NiMH battery (rechargeable)
Enclosure	Silicone protection
Ingress protection rating	IP65
Weight	7.5 kg / 16.5 lbs
See user manual for complete specifications.
