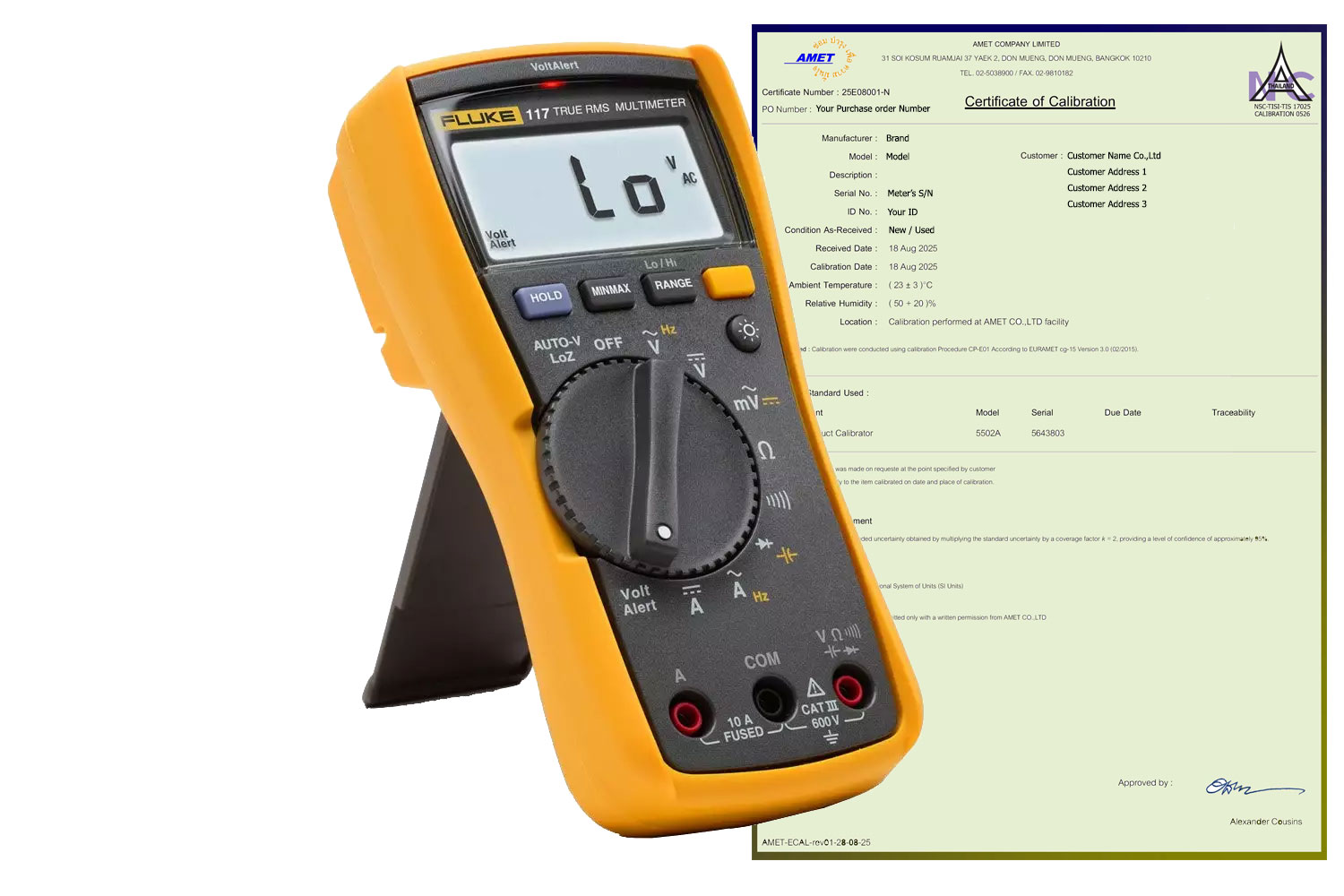

Fluke 117 + 17025 Calibration Electrician’s Multimeter with Non-Contact Voltage

Name: Fluke 117 + 17025 Calibration Electrician's Multimeter with Non-Contact Voltage
SKU: 25617
Price: 12635.1 THB
Availability: BackOrder

ราคาพิเศษ ฿11,808.50 excl VAT

฿12,635.10 incl VAT

สินค้าพร้อม Certificate สอบเทียบตามมาตรฐาน ISO17025

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: มัลติมิเตอร์

รายละเอียดเพิ่มเติม

Specifications: Fluke 117 Electrician’s Multimeter with Non-Contact Voltage

Specifications
Maximum voltage between any terminal and earth ground	600 V
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-033: CAT III 600V
Fuse for A input	11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display	Digital: 6,000 counts, updates 4 per second
Bar graph	33 segments, updates 32 per second
Operating temperature	-10°C to +50°C
Storage temperature	-40°C to +60°C
Battery type	9 volt Alkaline, IEC 6LR61
Battery life	400 hours typical, without backlight
Accuracy Specifications
DC millivolts	Range/resolution	600.0 mV / 0.1 mV
DC millivolts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
DC volts	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V
DC volts	Accuracy	±([% of reading] + [counts]): 0.5% + 2
Auto volts	Range/resolution	600.0 V / 0.1 V
Auto volts	Accuracy	2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)
AC millivolts¹ True RMS	Range/resolution	600.0 mV / 0.1 mV
AC millivolts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
AC volts¹ True RMS	Range/resolution	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V
AC volts¹ True RMS	Accuracy	1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)
Continuity	Range/resolution	600 Ω / 1 Ω
Continuity	Accuracy	Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
Ohms	Range/resolution	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ
	Accuracy	0.9% + 1
	Range/resolution	40.00 MΩ / 0.01 MΩ
	Accuracy	5% + 2
Diode test	Range/resolution	2.00 V / 0.001 V
Diode test	Accuracy	0.9% + 2
Capacitance	Range/resolution	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF
	Accuracy	1.9% + 2
	Range/resolution	> 1000 μF
	Accuracy	5% + 20%
Lo-Z capacitance	Range	1 nF to 500 μF
Lo-Z capacitance	Accuracy	10% + 2 typical
AC amps True RMS (45 Hz to 500 Hz)	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
AC amps True RMS (45 Hz to 500 Hz)	Accuracy	1.5% + 3 20 A continuous overload for 30 seconds max
DC amps	Range/resolution	6.000 A / 0.001 A 10.00 A / 0.01 A
DC amps	Accuracy	1.0% + 3 20 A continuous overload for 30 seconds max
Hz (V or A input)²	Range/resolution	99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz
Hz (V or A input)²	Accuracy	0.1% + 2
1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F.
Mechanical and General Specifications
Size	167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Weight	550 g
Warranty	1 years
