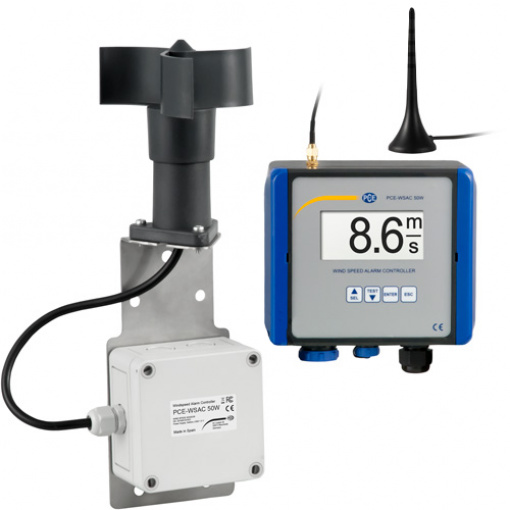

Radio Wind Warning System / Wind Monitoring on Construction Cranes / 4 … 20-mA analog output / Power supply 110 … 230V AC or +24V DC�
– Robust plastic housing
– Units: km / h, mph, m / s
– 4 … 20-mA analog output
– 128 x 64 pixel LC display
– Alarm relay
– Measuring range up to 180 km / h
– Durable stainless steel ball bearings
– Ambient temperature -20 … 70°C / -4 … 158°F
– Radio transmission
Display of�air flow meter�PCE-WSAC 50W 24 | |
Entrance | Pulse, analog (4 … 20-mA) or radio |
Radio | IEEE 802.15.4 ISM 2.4 GHz |
Units | km / h, mph, m / s |
Power supply for sensors | +15V DC |
Analog output | 4 … 20-mA |
Maximum input impedance | 500 Ω |
Resolution of the analog output | 10 bits |
Accuracy of the analog output | ± 1.5% |
Alarm relay | Max. 250V AC, 8 A |
Display | Backlit 128 x 64 pixel LC display |
Casing | Robust plastic housing |
Protection class | IP65 |
Dimensions | 145 x 95 x 125 mm / 5.7 x 3.7 x 4.9 in |
Weight | 650 g / 1.4 lbs |
Sensor of�wind speed meter�PCE-WSAC 50W | |
Measuring range | 4 … 180 km / h |
Minimum start speed | 8 km / h |
Accuracy | ± 1 km / h in the range 4 … 15 km / h |
± 3% in the range 16 … 180 km / h | |
Power supply | Battery mono cell D 1.5V DC |
Power consumption | Approx. 0.3 W with 1.5V DC power supply |
Housing material | PA + FG |
Ball-bearing | Stainless steel X65Cr13 |
Holder | Stainless steel AISI 304 |
Weight (with standard bracket) | About 680 g / 1.5 lbs |
Weight with self-leveling bracket | About 900 g / 2 lbs |
Dimensions | 320 x 110 x 100 mm / 12.6 x 4.3 x 3.9 in |
Storage temperature | -35 … 70°C / -31 … 158°F |
Ambient temperature | -20 … 70°C / -4 … 158°F |
Protection | IP65 |
