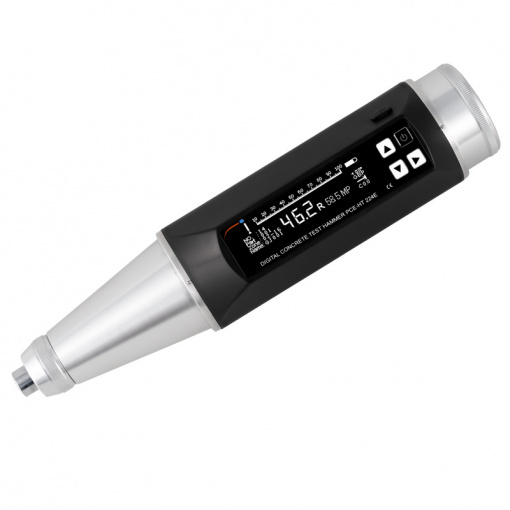

Concrete Test Hammer PCE-HT 224E with Digital Display

Mechanical concrete hardness tester with OLED / Measuring range 10 … 60 N /mm²  (1500 … 8500 PSI or lbs/in²) / Data storage analysis software / Built-in battery for mobile use / Test load 2.207 J / For measuring the quality of concrete surfaces

The Concrete Test Hammer is a measuring tool for testing the strength of concrete. The Concrete Test Hammer measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the Concrete Test Hammer. Thus, the Concrete Test Hammer finds its essential application in the construction and in the construction sector. The Concrete Test Hammer is also suitable for testing hardness of rolled paper.  The built-in mechanism on the hardness tester always ensures the same impact energy of 2.207 Nm.

In addition to testing concrete, the Concrete Test Hammer can also store measured data. The stored measurement data can be transferred from the Concrete Test Hammer to a PC after a measurement run. For this, the mini-USB interface is available on the Concrete Test Hammer. The evaluation of the measurements from the hardness tester is carried out with the supplied PC software.

The Concrete Test Hammer displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The Concrete Test Hammer can be setup to measure at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°).
