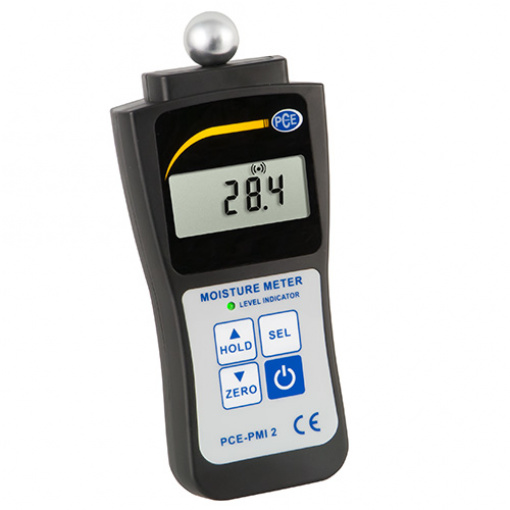

Damp Meter for Building Materials PCE-PMI 2

PCE-PMI 2 Damp Meter for Building Materials
For nondestructive measurement of the moisture content of concrete, cement, gypsum, wood, plaster, mortar and more

PCE-PMI 2 is a nondestructive damp meter or moisture analyzer that measures the moisture content of concrete and other construction and building materials. Featuring a variety of preset characteristic curves based on different material densities, this electronic moisture analyzer enables fast, reliable, noninvasive moisture measurement without damaging the surface.

• Electrical resistance measuring principle
• Non-destructive, non-invasive
• Penetration depth up to 50 mm / 1.96 inches
• For concrete, cement, cork, wood, plaster, rubber and more
• Alarm function when exceeding threshold levels
• Metallic sphere or ball sensor
• Adjustable LCD backlight
• Auto-off power-saving function
• Zero / self-calibration function
• Max hold function

Technical specifications

Measuring range	0 … 200
Resolution	0.1
Accuracy	±(0.5% of reading + 0.5)
Penetration depth	50 mm / 1.96 inches
Measuring principle	Capacitive (electrical resistance)
Sensor type	Metal spheroid
Display	LCD screen
Battery	4 x 1.5 V AAA batteries
Dimensions	165 x 62 x 26 mm 6.5 x 2.4 x 1.0 inches
Weight	119 g / 0.26 lb (without batteries)
