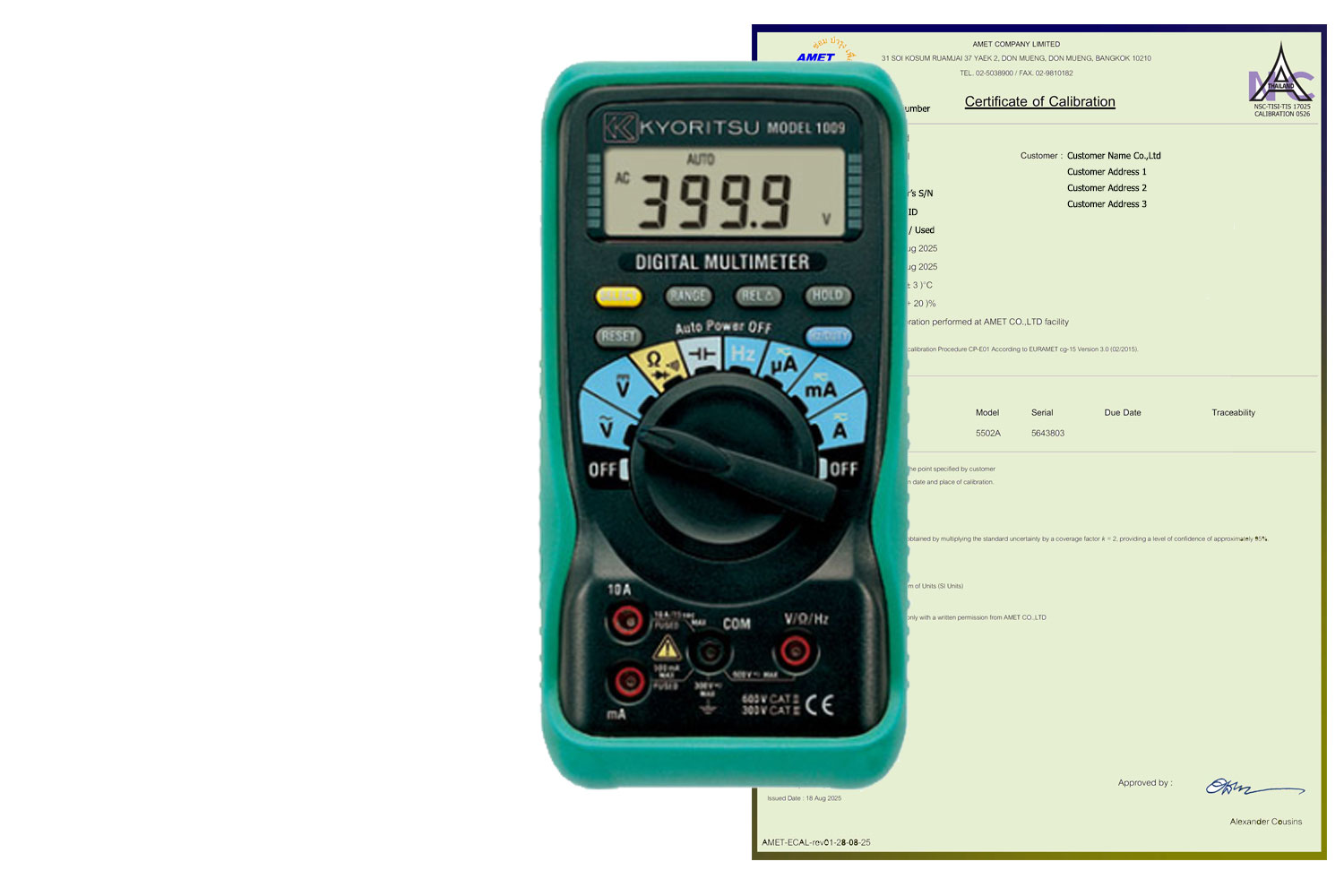

KYORITSU 1009 + 17025 Calibration Digital Multimeter

KYORITSU 1009 Digital Multimeter

Display : 3999 counts

DC V	400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V)
AC V	400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 to 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V)
DC A	400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt (400/4000µA) ±1.0%rdg±4dgt (40/400mA) ±1.6%rdg±4dgt (4/10A)
AC A	400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A)
Ω	400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ)
Continuity buzzer	0 to 400Ω (Buzzer sounds below 100Ω)
Diode test	1.5V open circuit voltage: Approx. 0.4mA Test Current
Capacitance	40/400nF/4/40/100µF
Frequency	5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
DUTY	0.1 to 99.9% (Pulse width/Pulse period) ±2.5%±5dgt
Applicable standards	IEC 61010-1 CAT III 300V, IEC 61010-2-031, IEC 61326
Power source	R6 (1.5V) × 2
Dimension	161(L) × 82(W) × 50(D)mm
Weight	Approx. 280g
Accessories	7066A (Test leads) 8919 (Ceramic fuse[10A/600V]) × 1 (included) 8923 (Fuse [0.5A/600V])× 1 R6× 2 Instruction Manual
Optional accessories	7234 (Crocodile clip test lead) 9095 (Carrying case)
