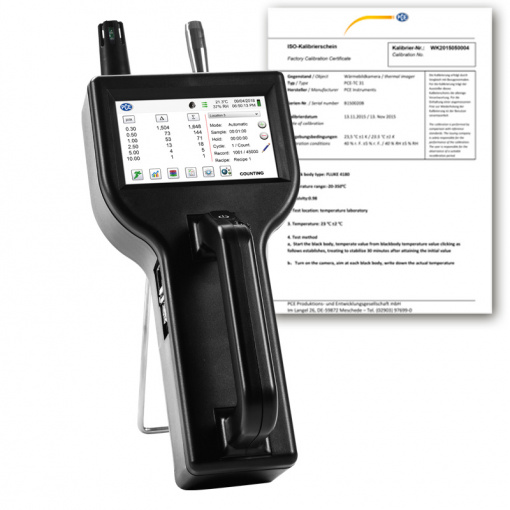

Measurement of particle sizes up to 25 μm / Up to 3 parallel measuring channels / Internal memory / Reporting according to ISO 14644-1, EU GMP Annex I, FS 209E / Extrapolation of the mass concentration in μg / m³ /�USB�or (optional)�Ethernet or (optional) Wifi connection
– Internal memory
– Particle sizes up to 25 μm
– Color display
– Handy
– 3 measuring channels
– ISO 14644-1, EU GMP Annex I, FS 209E
– Mass concentration
– USB
– Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921
Measuring range | 0.3 … 25 μm |
Measuring channel sizes | Factory calibrated at 0.3, 0.5, 5.0 μm |
Counting efficiency | 50% at 0.3 μm 100% at > 0.45 μm according to JIS |
Flow | 2.83 l / min (0.1 ft3 / min) |
Random loss | 5% at 4,000,000 particles / ft³ |
Battery | 10 h |
Light source | Long-life laser diode |
Zero count | < 1 count / 5 min (< 2 particles / ft³) |
According to ISO 21501-4 and JIS | |
Counting modes | Automatic, manual, real-time, cumulative / |
Differential, mass concentration | |
Alarms | 1 … 9999999 counts, adjustable |
Calibration | Traceable to NIST |
Display | 4.3″ WQVGA color touch display, 480×272 px |
Printer | External thermal printer |
Aspiration | Internal pump with automatic |
Flow control | |
Air outlet | Internal HEPA filter |
Battery pack | Replaceable Li-Ion battery |
Charging time | About 4 hours |
Reports | ISO 14644-1 |
EU GMP Annex 1 | |
FS 209E | |
Configuration | Memory for 50 custom configurations |
Standards | ISO 21501-4 and JIS B9921 |
Dimensions | 25.4 x 12.9 x 11.4 cm |
Weight | 1.0 kg |
Storage | 45000 data sets (ring memory) consisting of |
Particle count, temp and humidity, locations and times | |
Sample locations | Up to 1000 locations can be stored |
Samples duration | 1 s … 99 h adjustable |
Power supply | 110 … 240V AC 50/60 Hz |
Operating conditions | 5 … 40°C / 41 … 104°F |
Up to 95% RH not condensing | |
Storage conditions | 0 … 50°C / 32 … 122°F |
Up to 98% RH not condensing | |
Interface | USB |
Optional interfaces | Ethernet, WiFi 802.11 b/g, RS485 or RS232 |
Number of measuring channels � | 3 |
