Dynamometer 2500g

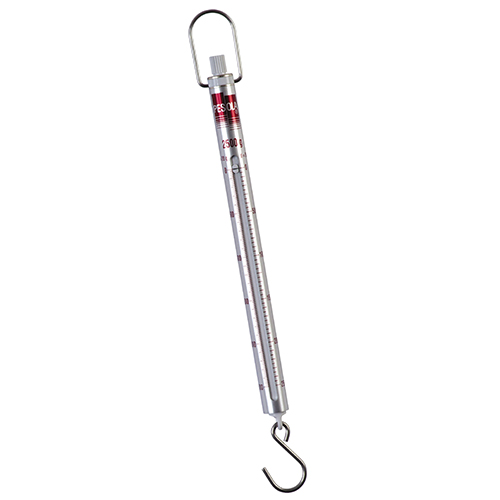

Medio-Linie Spring Dynamometer 2500 g
weighs up to 2500 g / resistant to corrosion / easy handling

The Dynamometer 2500 g is suited for weighing all goods of up to 2500 g. The resolution of the Dynamometer is 20 g, and the maximum deviation is ±0.3 % at full load – unique for this kind of Dynamometer. Due to its type of construction, the Dynamometer does not need any batteries and is also suited for demonstration purposes in schools or universities. Furthermore, the Dynamometer can be used in the machine industry for tensile measurements of any kind. Many customers rely on the Dynamometer for its quality and precision. The materials used in the Dynamometer are resistant to corrosion and thereby assure a long life span.



• Analogue scale reading
• Resistant to corrosion
• Suited for demonstration purposes
• No batteries needed
• Easy handling
• Tare function



Technical specifications
Measuring range	25 N / 2.5 kg / 5.5 lbs
Resolution	20 g / 0.04 lbs
Accuracy	± 0.3 %
Tare range	~ 20 %
Scale reading length	100 mm / 3.9 in
Length (unextended)	225 mm / 8.9 in
Length max. (extended)	325 mm / 12.8 in
Diameter	Ø 12 mm / Ø 0.47 in
