Electrical Tester PCE-HDM 7

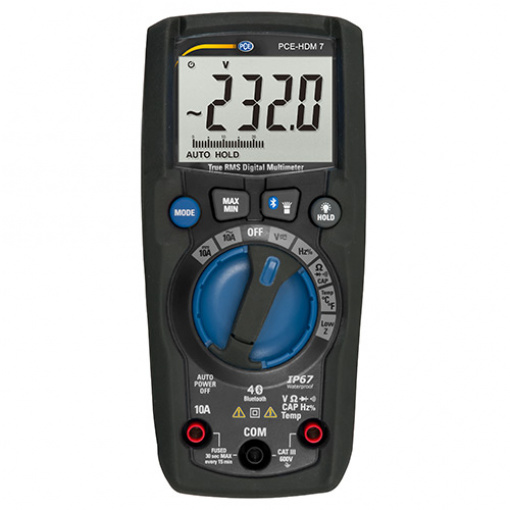

This electrical tester PCE-HDM 7 is a compact measuring instrument with double molded plastic housing. The electrical tester has a very large, high-contrast LC display. The PCE-HDM 7 electrical tester is designed in CAT III / 600 V / EN61010-1. The electrical tester has a measuring range automatic high measuring accuracy. The robust housing makes the PCE-HDM 7 electrical tester a perfect measuring instrument for the service technician on site.

The electrical tester is equipped with a Bluetooth interface, which can be read out via an app. In the app, various visualizations and a data logger are available. In order to be able to work with the electrical tester even in low visibility and light conditions, the electrical testers equipped with a measuring point illumination and a display illumination.

– Capacity measurement
– MAX function
– Measuring point and display illumination
– Temperature measurement via thermocouple type K
– Data logger function via app
– Diode test

General
Display	4000 digit LCD
Isolation	double, class II
Casing	Double molded body, IP67 (waterproof and dustproof)
Diode test	Test current maximum 1.5-mA no-load voltage 3V
Continuity test	Limit <50 Ω
Overload indicator	Display of “OL” in the display
Battery indicator	Display at low battery voltage
Polarity	Display of “-” in negative polarity
Measuring rate	2 measurements per second, nominal
Automatic shutdown�	after about 15 minutes of inactivity
Input resistance	10 MΩ AC / DC
AC coupling	TRMS (50 … 400 Hz)
Bandwidth	50 … 400 Hz
Power supply	3 x 1.5V AAA battery
Fuse	10 A / 600V (5 x 20 mm)
Operating conditions  �	0 … 40°C / 32 … 104°F, <70% rel. humidity
Storage conditions	-10 … 60°C / 14 … 140°F, <80% rel. humidity
Operating altitude	2000 m / 6562 ft
Dimensions	147 x 68 x 50 mm / 5.8 x 2.7 x 2 in
Weight	318 g / < 1 lb
Security	UL 61010-1 V-3 CAT III 600V Degree of pollution 2

	Measuring range	Resolution	Accuracy (% v.Mw.)
Alternating current	4 A	1-mA	± 2.5% + 5 Dgt
	10 A	10-mA	± 2.5% + 5 Dgt
Overload protection: 10 A / 600V fuse        � AC coupling: 50 … 60 Hz
Direct current �	4 A	1-mA	± 2% + 3 Dgt
	10 A	10-mA	± 2% + 3 Dgt
Overload protection: 10 A / 600V fuse     �
AC �	4V	1 mV	± 1% + 5 Dgt
	40V	10 mV	± 1.2% + 5 Dgt
	400V	0.1V	± 1.5% + 5 Dgt
	600V	1V	± 1.5% + 5 Dg
Input protection: 600V DC or 600V AV RMS Input resistance: 10 MΩ AC Coupling: 50 … 60 Hz
AC	4V	1 mV	± 1.5% + 5 Dgt
(low input resistance)	40V	10 mV	± 1.5% + 5 Dgt
	400V	0.1V	± 1.5% + 5 Dgt
All measuring ranges of the alternating voltage were specified with 5 … 100% of the measuring range
Input protection: 300V AC RMS or 300V DC Input resistance: approx. 3 kΩ AC coupling: 50 … 60 Hz
DC	400 mV	0.1 mV	± 1% + 8 Dgt
	4 V	1 mV	± 1% + 3 Dgt
	40V	10 mV	± 1% + 3 Dgt
	400V	0.1V	± 1% + 3 Dgt
	600V	1V	± 1.2% + 3 Dgt
Input protection: 600V DC or 600V AV RMS Input resistance: 10 MΩ
DC	400 mV	0.1 mV	± 1.5% + 5 Dgt
(low input resistance)	4 V	1 mV	± 1.5% + 5 Dgt
	40V	10 mV	± 1.5% + 5 Dgt
	400V	0.1V	± 1.5% + 5 Dgt
Input protection: 300V AC RMS or 300V DC Input resistance: approx. 3 kΩ
Resistance	400 Ω	0.1 Ω	± 1.5% + 5 Dgt
	4 kΩ	1 Ω	± 1.5% + 5 Dgt
	40 kΩ	10 Ω	± 1.5% + 5 Dgt
	400 kΩ	100 Ω	± 1.5% + 5 Dgt
	4 MΩ	1 kΩ	± 2% + 10 Dgt
	40 MΩ	10 kΩ	± 2% + 10 Dgt
Input protection: 600V AC RMS or 600V DC
Capacity	40 nF	0.01 pF	± 5% + 35 Dgt
	400 nF	0.1 pF	± 3% + 5 Dgt
	4 μF	0.001 μF	± 3% + 5 Dgt
	40 μF	0.01 μF	± 3% + 5 Dgt
	400 μF	0.1 μF	± 3% + 5 Dgt
	4000 μF	1 μF	± 5% + 5 Dgt
Input protection: 600V AC RMS or 600V DC
Frequency	9,999 Hz	0.001 Hz	± 1% + 5 Dgt
	99.99 Hz	0.01 Hz	± 1% + 5 Dgt
	999.9 Hz	0.1 Hz	± 1% + 5 Dgt
	9,999 kHz	1 Hz	± 1% + 5 Dgt
	99.99 kHz	10 Hz	± 1% + 5 Dgt
	999.9 kHz	100 Hz	± 1.2% + 5 Dgt
	9,999 MHz	1 kHz	± 1.2% + 5 Dgt
Input protection: 600V AC RMS or 600V DC Sensitivity:> 8V RMS
Duty cycle	1 … 99%	0.1%	± 1.2% + 2 Dgt
Input protection: 600V AC RMS or 600V DC Pulse width: 0.1 … 100 mS Frequency range: 5 Hz … 10 KHz Sensitivity: > 8V RMS
Temperature (type K thermocouple)	-18 … 760°C / -0.4 … 1400°F	0.1°C / 0.18°F	± 2% + 5°C / 9°F
Input protection: 300V AC RMS or 300V DC
