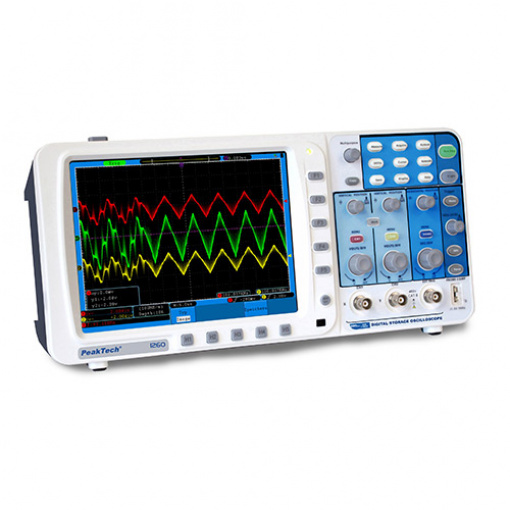

Electrical Tester PKT-1260

Name: Electrical Tester PKT-1260
SKU: 12658
Availability: BackOrder

PKT-1260

Availability : กรุณาติดต่อสอบถาม

หมวดหมู่: Electrical Tester

รายละเอียดเพิ่มเติม
บทวิจารณ์ (0)

Electrical Tester PKT-1260 with high-resolution TFT / USB port for real-time data transmission / 20 automatic measurement modes and FFT function

Digital storage electrical tester of the latest generation with high-resolution color display, backlight, high bandwith and high sampling rate, VGA-output, large internal memory, USB port and LAN connection for integration into networks. The amazing value for money and modern technology allows a wide range of applications in education, service and quality assurance area.

– high-resolution TFT color display with 800 x 600 pixels and 65536 colors- USB port for real-time data transmission or reading of internal memory

– saving of measured values and graphics directly onto the USB-stick

– VGA-output port for external monitor

– autoset and autoscale function for easy operation

– LAN connection for remote acces via network- internal memory of 10 million points per channel or 15 waveforms

– 20 automatic measurement modes and FFT function

– PASS/FAIL function

– safety: EN 61010-1; CAT II

Technical data

Bandwidth

200 MHz

Display

20 cm (8”) TFT with 65536 colors

Resolution

800 x 600 Pixel

Channel

2 CH

Measurement acqisition

Sampling mode

normal/peak detect/average

Sampling rate each Channel

1 GSa/s

Input

Input coupling

AC, DC, GND

Input impedance

1 MΩ +/- 2 % in parallel with 15 pF +/- 5 pF

Input voltage

400 V DC or ACpp

Vertical systems

Sensitivity

2 mV – 10 V/Skt/div.

Rise time

< 1,7 ns

Accuracy

+/- 3 %

Vertical resolutions

8 Bits (2 CH simultaneously)

Horizontal systems

Horizontal scale

1ns-100s/Skt./div

Sampling range

0,5 – 250 S/s

Trigger

Trigger type

Edge/Video/Pulse/Slope

Trigger mode

Auto, Normal, Single

Trigger coupling

DC, AC, LF, HF

Measurements

20 automat. measurements

peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B(falling), frequency, period, min, max

Phase difference

+/- 3°

Record

Record length

10.000.000 points/CH

Common specifications

Interfaces

USB, VGA, LAN

Operation voltage

100 ~ 240 V ACrms / 50/60 Hz

Dimensions (WxHxD)

340 x 155 x 70 mm
