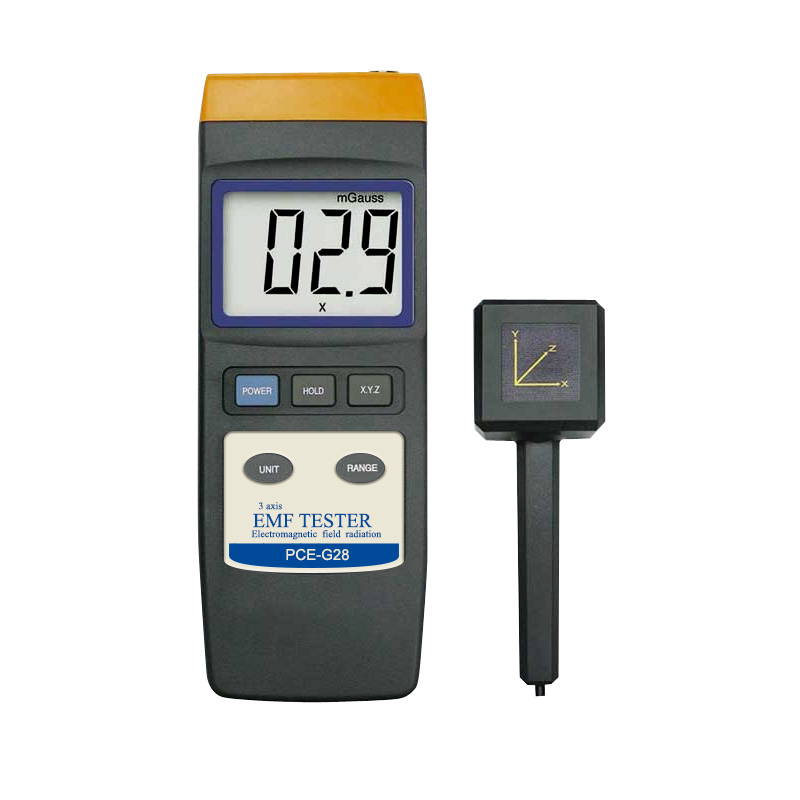

PCE-G28 is a portable, handheld environmental electromagnetic field radiation tester or gauss meter that detects electromagnetic fields (EMFs) and displays measurement results in milliGauss (mG) or microTesla (µT). This EMF radiation detector comes with an external 3-axis electromagnetic sensor (X, Y, Z direction).
– Measurement range: 0 … 20000 mG / 0 … 2000 µT
– Accuracy: ± 4% + 3 digits / ± 5% + 3 digits / ± 10% + 5 digits
– Resolution: 0.1 mG / 0.01 µT
– Detects electromagnetic fields (EMFs) on three axes (X, Y, Z direction)
– Displays measurement results in milliGauss (mG) or microTesla (µT)
– Comes with an external 3-axis electromagnetic sensor
– Data hold functionality
– Ideal tool for checking transformers and measuring EMFs generated by power lines, computer monitors, electric motors and installations
– Meets IEC 801-1 (EN 50081-1) / IEC 204 (EN 60204) standards
– Measures EMFs through casings, coverings and housings, eliminating the need to dismantle parts for inspection
Measurement range | microTesla: 0 to 20 µT / 0 to 200 µT / 0 to 2000 µT milliGauss: 0 to 200 mG / 0 to 2000 mG / 0 to 20000 mG |
Resolution (per range) | 0.01 µT / 0.1 µT / 1 µT 0.1 mG / 1 mG / 10 mG |
Accuracy | ±4 % + 3 digits (in range 20 µT and 200 mG)* ±5 % + 3 digits (in range 200 µT and 2000 mG)* ±10 % + 5 digits (in range 2000 µT and 20000 mG)* *Refers to 50 – 60 Hz y < 3 V/m (RF) |
Sampling rate | Approx. 0.4 second |
Frequency | 30 … 300 Hz |
Display | LCD, 3.5 digits |
Power | 1 x 9V battery |
Dimensions | Meter: 200 x 68 x 30 mm / 7.88 x 2.68 x 1.18 in Sensor: 225 x 75 x 55 mm / 8.86 x 2.95 x 2.17 in |
Weight | 470 g / 1.04 lbs (including battery) |
See user manual for complete technical specifications.
