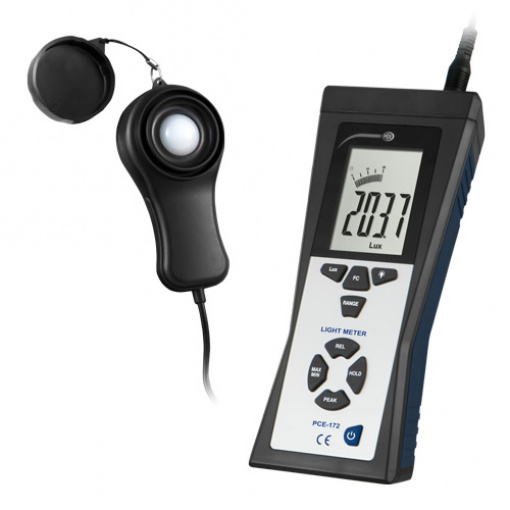

The Environmental Tester PCE-172 is used to measure the lighting conditions in industry, agriculture and research. Increasingly, the environmental tester is also used to test lighting in workplaces, in the decoration of shop windows and by designers. It meets international standards for this type of environmental tester.
The environmental tester provides measurement results in Lux and FootCandle units, where 1 fc is equal to 10.70 lux. Calculator for the conversion of lux. The device automatically detects the peak value if this value lasts for at least 10 μs. Due to the selectable measuring range the environmental tester PCE-172 has high accuracy. The handling is very easy. This environmental tester can also be used by untrained persons. However, it is always important to take into account in a lux measurement that certain conditions are met. For example, the distance and angle between the environmental tester and the object to be measured should be set as accurately as possible in order to achieve reproducible results.
– Solid design
– 3½ position LCD; maximum reading is 1999
– Measurement units can be displayed in lux or footcandles
– Battery level indicator
– “Overload” indication to warn when measurement range is exceeded
Ranges |
400.0/4000/lux |
Resolution |
0.1/1/10/100 lux |
Accuracy |
± 5% of reading ±10 digits (<10,000 lux) |
Repeatability |
± 3% |
Overload indicator |
OL = Overload |
Screen refresh rate |
1.5 per second |
Operating conditions |
0 … 40ºC / 32 … 104°F, 80% r.h. |
Display |
3¾ digit LCD |
Power |
9V battery |
Dimensions |
Device: 206 x 95 x 45 mm / 7.9 x 2.9 x 1.9 in |
Weight |
265 g / < 1 lb |
Standards |
Safety: IEC-1010-1; EN 61010-1 EMV: EN 50081-1; EN 50082-1 corresponding with DIN 5031; DIN 5032 |
