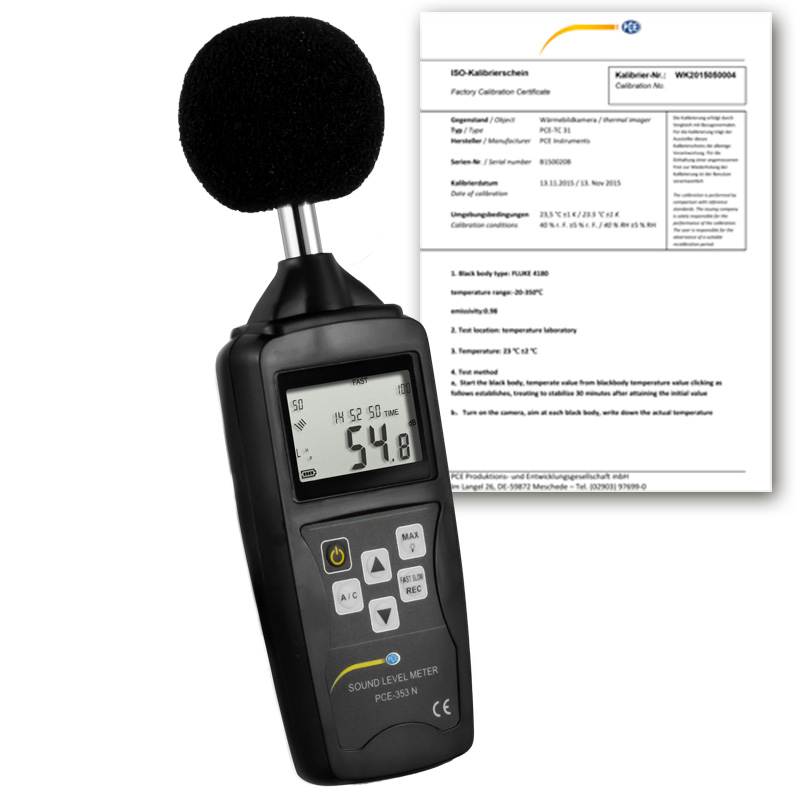

Environmental tester PCE-353N-ICA incl. ISO Calibration Certificate
Industrial Safety Gauge with graphic display / DC output up to 2.5V / Windbreak / Various measuring functions / Frequency weighting A and C / Data memory / For mobile and stationary use / Tripod mount
Industrial Safety Gauge with graphic display / DC output up to 2.5V / Windbreak / Various measuring functions / Frequency weighting A and C / Data memory / For mobile and stationary use / Tripod mount
The safety device is a sound measuring instrument with an adjustable measuring range of 30 … 130 dB. On the one hand, the measured values are displayed as a normal numerical value and on the other hand also graphically in the measuring range set by the operator. A special feature of the health and safety measuring instrument is the measurement function LEQ (equivalent continuous sound level) in addition to the normal sound measurement. This measurement function is a globally recognized measure of the average sound exposure, taking into account the duration, frequency and intensity of the individual sound events.
In addition to the sound measurement, the safety device can also be connected to a process interface. Here, the safety device generates a linear voltage signal of up to 2.5V. With the tripod mount on the back of the safety device can be optimally positioned the application. Thanks to the 9V interface, the safety device can be permanently operated stationary.
– Measuring range 30 … 130 dB
– Measurement functions Lp, LAeq, LAe, LCpeak
– DC output for process connection
– For stationary and mobile use
– Backlit LCD display
– 1/2″ microphone with windscreen
– Measurement functions Lp, LAeq, LAe, LCpeak
– DC output for process connection
– For stationary and mobile use
– Backlit LCD display
– 1/2″ microphone with windscreen
Measuring range | 30 … 130 dBA |
35 … 130 dBC | |
Accuracy | ± 1.5 dB (at 1 KHz and 94 dB), Class 2 |
Resolution digital display | 0.1 dB |
Resolution bar graph | 1 dB |
Frequency | A and C |
Manual measuring range | 30 … 80 dB |
50 … 100 dB | |
60 … 110 dB | |
80 … 130 dB | |
Dynamic display area | 50 dB |
Display outside the measuring range � | “Over” at overrange |
“Under” at measuring range undershoot | |
Measurement functions | Lp, LAeq, LAe, LCpeak |
Data storage | 10 readings |
DC output | 0 … 2.5V, 25mV / dB |
Output resistance | 600 Ω |
Term review | Fast (125 ms) |
Slow (1 s) | |
Frequency range | 31.5 Hz … 8 kHz |
Power supply battery | 9V block battery |
Power supply power supply | 9VDC, 100-mA |
Sound sensor | 1/2″ polarized condenser microphone |
Display | LCD display, 4 digits |
Operating conditions | 0 … 40°C / 32 … 104°F, < 80% rh |
working height | < 2000 m / 6561.7 ft |
Dimensions | 200 x 72 x 35 mm / 7.9 x 2.8 x 1.4 in |
Weight | About 290 g / < 1 lb |
Standard | IEC 61672-1: 2002 (Class II), |
JJG 188-2002 |
