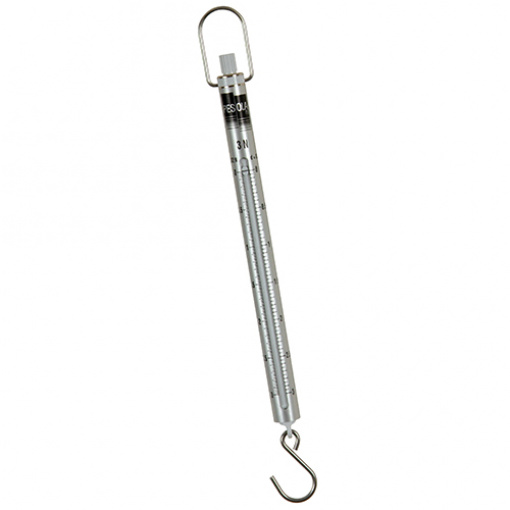

Medio-Linie 300 g Force Gauge
hanging suspension hook / resistant to corrosion / analogue scale reading

The 300 g Force Gauge is a vertical hanging suspension hook for traction force measurement. Ideal for use in colleges, this corrosion-resistant anodized aluminum analog scale features a fatigue-resistant internal spring and requires no batteries.

Durable, corrosion-resistant anodized aluminum casing
Precise graduation in high resolution
Overload proof up to 1000 g
Screw for adjustment of zero position and tare
Suspension bow can be swiveled and rotated 360 °
Measuring position: Vertical only

Technical specifications
Measuring range	300 g / 3 N / 0.66 lbs
Resolution	0.02 N / 2 g / 0.004 lbs
Accuracy	± 0.3 % of load
Tare range	≈ 20 % of capacity
Scale reading length	100 mm / 3.9 in
Length (unextended)	220 mm / 8.7 in
Length max. (extended)	320 mm / 12.6 in
Diameter	Ø 12.2 mm / Ø 0.48 in
