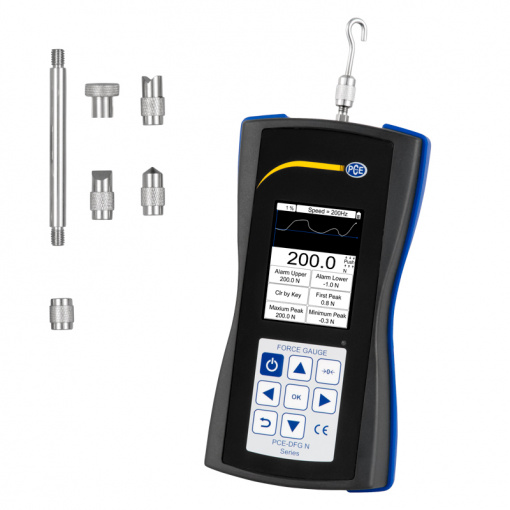

Force Gauge PCE-DFG N 200

In addition to the internal storage option of 100 measured values, a USB interface is available for data transmission. With the software, the measured values ​​can be saved on a computer for later evaluation. Due to its robust housing, a sensible menu navigation and the simple operation via 8 keys, the digital force meter PCE-DFG N 200 is characterized by a high degree of user-friendliness. The power supply of the dynamometer via batteries, which can be charged via a included charger and allow a continuous operation of the device of 10 hours. With these characteristics, the digital force gauge is suitable for quality control in the production area, for incoming and outgoing inspection as well as for the development of new components or for testing safety-relevant components.

– Pull and pressure force measurement
– 1600 Hz sampling rate
– Error limit 0.1% of the measuring range
– PEAK function (MIN / MAX)
– Limit value function
– Different measuring units
– Automatic or manual storage
– Graphical analysis
– Automatic orientation display
– Time date
– Control and evaluation software
– Automatic shutdown adjustable
– Battery status indicator
– Network operation possible
– Save 100 readings
