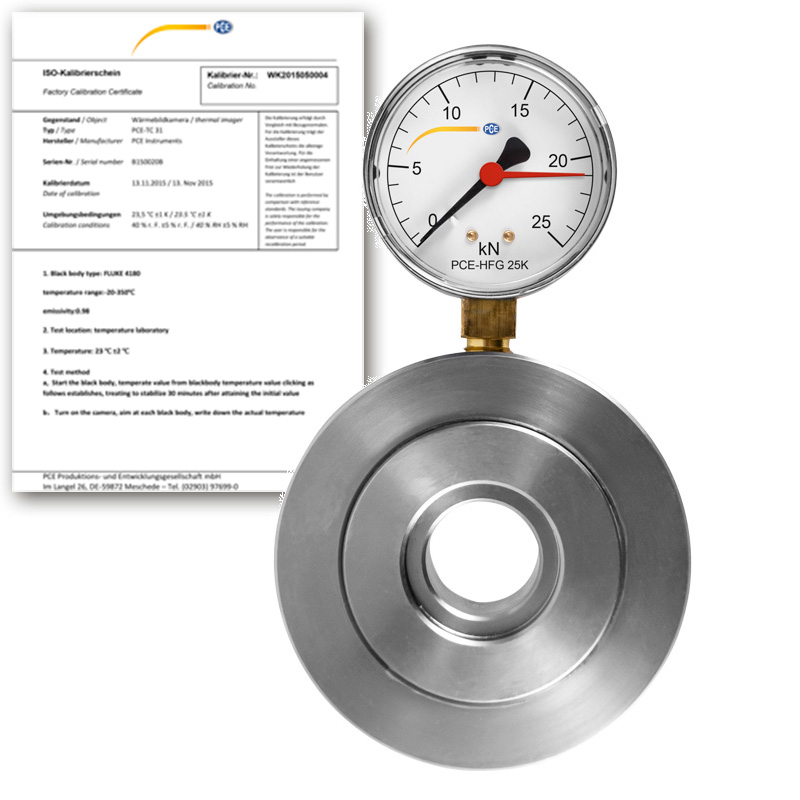

Force gauge with analog scale / Compact for small installation spaces /�Drag pointer / With mounting holes / 27 mm ring opening
– Stainless steel force gauge
– Measurement of static compressive forces
– Ring force transducer and pressure adapter
– Screw mount for axial assembly
– Integrated drag pointer
– Pressure force display in Newton [N]
– Incl. ISO calibration certificate
Measuring range | 0 … 25,000 N / 5,620 lbs |
Resolution | 1000 N / 224.8 lbs |
Measuring accuracy | ±1.85% of the measuring range |
Dimensions of the display | Ø 55 mm |
Mounting holes | 2 x M6 |
Ambient conditions | 0 … 50°C / 32 … 122°F |
