SKM 1.0 Force Gauge
for automatic doors, roofs, and windows / nominal load of 1000 N / taring / determination of maximum load / comfortable construction

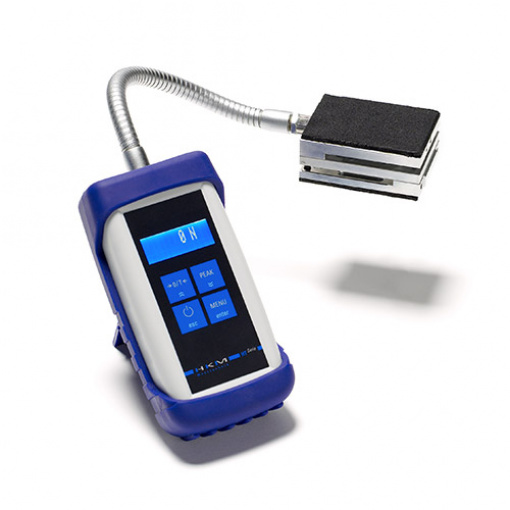

The SKM 1.0 Force Gauge, consisting of a load cell and hand terminal, allows you to measure closing forces up to 1000 Newtons with a resolution of 1 Newton. The closing Force Gauge is suitable for measuring forces in the field of automatic doors, windows, and cut off walls; such as in warehouses, general stores, and public offices. The display and external sensor are connected via a swan neck allowing for maneuverability. The Force Gauge is small, easy to use, and designed in a very modern and comfortable way, utilizing less buttons and an easy to read menu. The menu allows you to input data, calibration, and the article number, as well as allowing you to turn on the auto-off feature to save power. To save more power, it is advisable to set up contrast and measuring rate. It is important to measure forces before using automated objects, so that you may improve closing forces to prevent infraction, incarceration, contusions, and in the worst case, loss of limbs.
- Measurement of closing forces
- Illuminated display
- Highly sophisticated design
- Auto-power off
- 8 hours continuous lifetime
- Mobile through battery power
Technical specifications | |
Nominal load | 1000 N / 100 kg / 220 lbs |
Accuracy | ± 3 N / 0.3 kg / 0.66 lbs |
Sensitivity | 1 N / 0.1 kg / 0.22 lbs |
Dimensions | 78 mm x 145 mm x 44 mm 3.1 in x 5.7 in x 1.7 in |
Display | 12 characters, 2 lines |
Power supply | 4 x battery, AA type |
Operation time | 8 hour operating time |
Measuring range | adjustable: 10, 20, 100 Hz |
Protection class | IP 40 |
Working temperature | 0º C … +50º C +32º F … +122º F |
Storage temperature | -20º C … +70º C -4º F … +158º F |
Cable connection | via swan neck, length of 200 mm / 7.9 in |
Weight | 0.7 kg / 1.5 lbs |
