For AQ-sensor heads / Analog output 4-20 mA /
Application to control ozone generators / Integrated into networks /
Environmental, monitoring and control

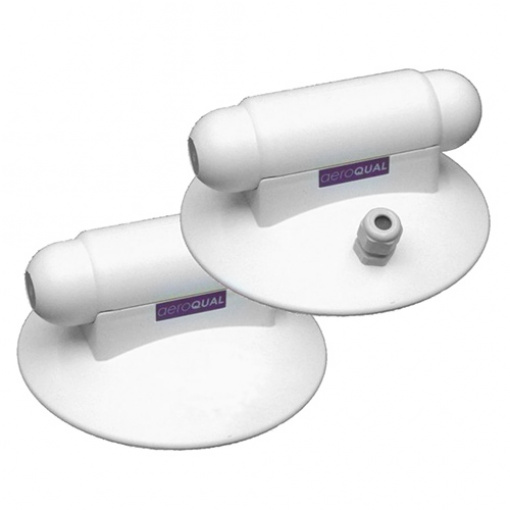

The fixed gas detector base AQ-FM S900 for AQ-sensor heads can communicate with a variety of hardware systems. The transmitter can also be used as switching relays with user-set values as a 4-20 mA gas transmitter and it can communicate with a network�via the RS485 interface. Changing sensor heads is quick and easy, no configuration changes required. Calibration certificate included.
Attention! No AQ sensor head is included in the delivery, it must be ordered separately as an accessory!
– Real-time network monitoring
– Monitoring of indoor air quality
– Multiple analog and digital outputs
– Used in a real-time network
– Replaceable sensor head
– PC data logging and network option
– Application in health and safety
Power supply | Regulates 12V, 800 mA |
Analog output | 4-20 mA (optional isolated), 10… 30V |
Externalsignal | Transistor output |
External control signal | Min.- Max. Alarm,control and diagnostics |
Energy supply | Standby switch |
Interface | RS485 |
Jumper | J1, J2, J3 Terminal resistance |
Connector | Screwed |
ID | 1 Standard – Customer configurations from 1 to 255 |
Alarm thresholds | Customer configurable |
Control of the switching points | Customer configurable |
Sensor head | Removable, interchangeable and reprocessed |
Scanning | Active sampling by internal blower |
Temperature and humidity sensor | Measuring range temp.: -40°F… 255°F / -40°C… 124°C Measuring range air humidiy: 0… 100% RH |
Software | Configuration via the included software |
PC Data Logging & Networking CD | Optional – Article-No.: R60 |
USB Connection | Optional – RS485 to USB Adapter: R53 |
Power supply | Optional – 12V DC DIN mounting rail 100… 250V AC R37 |
Included housing | Polycarbonate equivalent IP20 and NEMA 1 |
Size with base unit | 64 x 130 Ø (mm); 2½ x 5 1/8 Ø (in) |
Attachment | Screw device |
Weight | Approximately .5 lbs / 200 g |
Approval pursuant to Part 15 of the FCC Regulation | EN 50082-1: 1997 EN 50081-1: 1992 |
