Measuring function | Infrared |
Measuring range | -50 … 550 °C |
Resolution | ≤ 1000 °C/°F: 0.1 °C/°F |
> 1000 °C/°F: 1 °C/°F | |
Accuracy | -50 … 0 ºC: ± 3 ºC |
> 0º C: ± 1.5 % or ± 2.0 | |
the larger value counts | |
Measuring function | Type K |
Measuring range | -50 … 850 ºC |
Resolution | ≤ 1000 °C/°F: 0.1 °C/°F |
> 1000 °C/°F: 1 °C/°F | |
Accuracy | ± 1.5 % or ± 1.5 °C |
the larger value counts | |
Measuring function | Air temperature |
Measuring range | -20 … 60 ºC |
Resolution | 0.1 °C |
Accuracy | 0 … 40 ºC: ± 1.0 ºC |
Other: ± 2 °C | |
Measuring function | Humidity |
Measuring range | 0 … 100 % r.H. |
Resolution | 1 % |
Accuracy | 35 … 75 % r.H.: |
± 3.0 % r.H. | |
Other: ± 5 % r.H. | |
Measuring function | Dew point |
Measuring range | -20 … 60 ºC |
Resolution | 0.1 °C |
Accuracy | 25 ºC, 40 … 80 % r.H.: ± 1.5 ºC |
Wet bulb temp. | |
Measuring range | -20 … 60ºC |
Resolution | 0.1 °C |
Accuracy | 25 °C: ± 1.5 °C |
Emissivity | adjustable between 0.1 and 1.0 |
Optical resolution | 13 : 1 |
Response time | ≤ 500 ms |
Spectral sensitivity | 8 … 14 um |
Laser | ≤ 1 mW, 630 … 670 nm, class 2 laser |
Automatic shutdown | after one minute |
Operating conditions | 0 … 50 ºC / ≤ 95% r.H. |
Storage conditions | -20 … 70 ºC / ≤ 80 % r.H. |
Power supply | 9 V battery |
Weight | ca. 130 g |
HVAC Meter PCE-675 incl. Type K
PCE-675
Availability : กรุณาติดต่อสอบถาม
หมวดหมู่: HVAC Meter / HVACR Tester

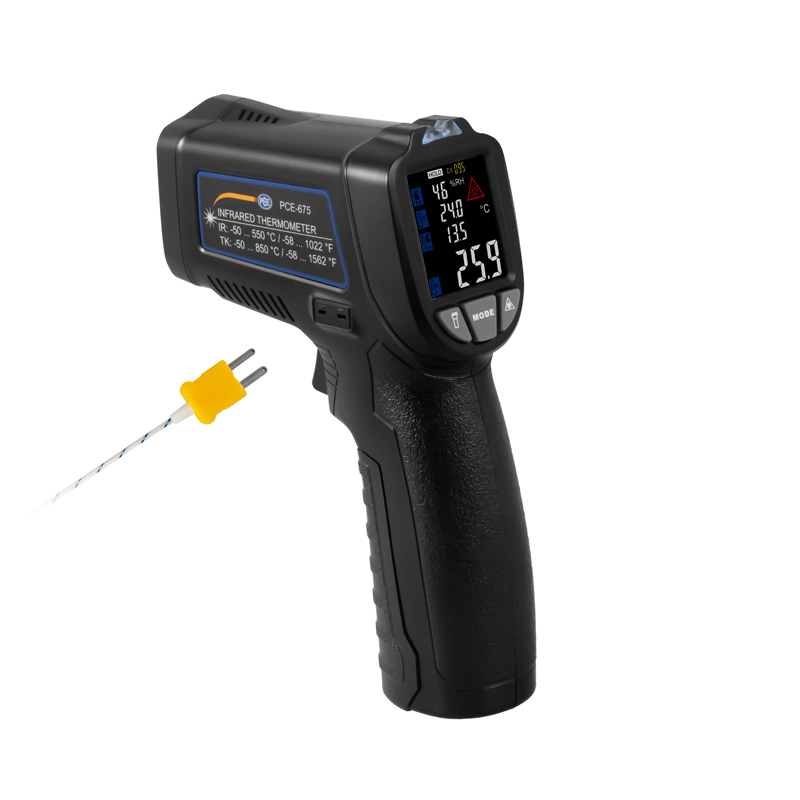

HVAC Meter PCE-675
Easy-to-use infrared thermometer with red laser pointer / Measuring input for K-type / Surface temperatures / Air temperature / Humidity / Dew point temperature
The HVAC meter has a 13:1 spot-to-spot ratio and can accurately measure surface temperatures and ambient humidity over a very long distance. The HVAC meter brings advantages, such as a simple operation and a red sighting laser. These features allow the near perfect alignment of the HVAC meter for accurate measurements.
The HVAC meter is universally applicable. The integrated flashlight allows the measuring point to be illuminated in the dark. The individual settings of the HVAC meter allow a wide range of temperatures and humidity to be measured. The HVAC meter does not have a fixed emission value, but has a setting span of 0.1 to 1.0, thus covering more than 90% of all temperature measurement tasks.
– Low measurement sequence
– Emissivity adjustable between 0.1 and 1.0
– Automatic shutdown
– Switchable laser sighting aid
– Measured value display selectable between °C and °F
– Different exhibition settings
– Battery operation
– Compact and robust design
