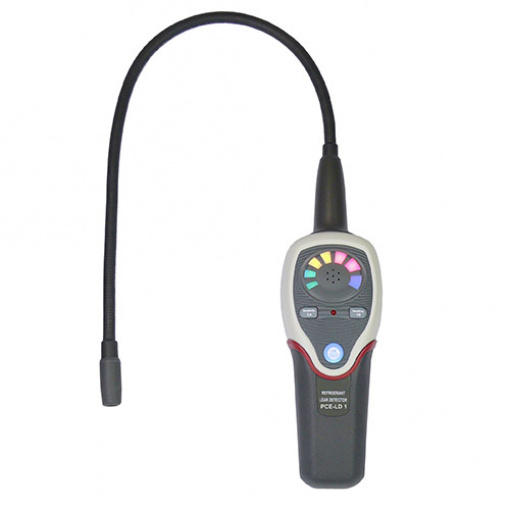

PCE-LD 1 HVAC Meter
Accurate, affordable handheld CFC / HFC refrigerant gas leak detector
PCE-LD 1 is a portable handheld HVAC meter or refrigerant gas leak detector used to locate CFC/HFC refrigerant gas leaks. This highly sensitive gas leak detector can locate gas leaks from HVACR refrigeration systems even in areas contaminated by other gases. The gas sensor is located at the end of a 390 mm / 15.35 in flexible goose-neck tube, allowing unique access to hard-to-reach places.
– Detects R-134a, R-404A, Freon R-407C, R-410A and R-22 (per EN 14624)
– High / low sensitivity per SAE J1627 rating criteria
– Audible and visual alarms
– Easy to use
– Tricolor LED indicator shows concentration of gas
– Sensor life: Approx. 1 year – see accessories for replacement
Sensitivity | Adjustable high / low (per SAE J1627 rating criteria): 6 g/yr or 30 g/yr for R-22 and R-134a 8 g/yr or 40 g/yr for R404A, R-407C and R-410A |
Warm-up time | Approx. 90 seconds |
Gases detected | CFC / HFC refrigerants including R-134a, R-404A, Freon R-407C, R-410A and R-22 |
Per standard | EN 14624 |
Test cycle | Continuous |
Sensor tube length | Approx. 390 mm / 15.35 in |
Power supply | 4 x AA batteries |
Battery life | Approx. 40 hours of normal use |
Auto shut-off | After 10 minutes of inactivity |
Dimensions | 6.8 x 2.6 x 2.2 in / 173 x 66 x 56 mm |
Weight | < 1 lb / 400 g |
See user manual for complete technical specifications.
