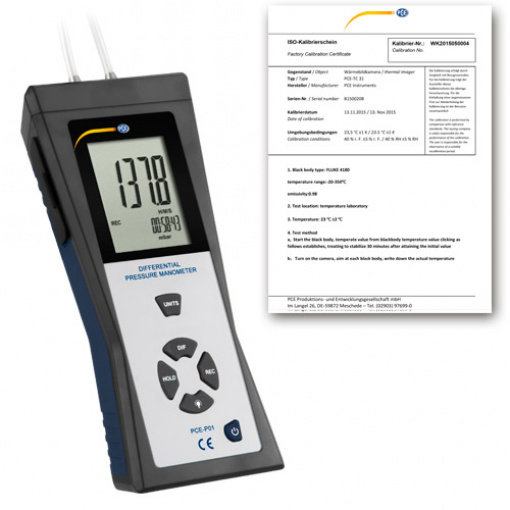

PCE-P01HVAC Meter – Differential Pressure incl. ISO calibration certificate
Portable handheld meter measures differential pressure from -0.137 to 0.137 bar (-2.000 to 2.000 psi) / Features real-time data-logging capabilities using the included PC software and USB cable
PCE-P01 is a portable handheld digital HVAC meter used to measure differential pressure in pneumatic, compressor and pump installations, valves, tanks and heating, ventilation and air conditioning (HVAC) systems. The PCE-P01 displays min / max / average values right on the meter’s screen for comparison against current measurement values.
In addition, the PCE-P01 differential pressure HVAC meter features real-time data-logging capabilities with an adjustable interval from 1 second to 24 hours. The device comes with 4 x 30 cm / 11.81 in silicon tubes, 1 x 9 V block battery and 1 x AC power adapter. Also included in the delivery contents are PC-compatible software and a USB cable. The software can be used to detect and document pressure fluctuations, and to display the data graphically or in a table. For real-time data recording, simply connect the HVAC meter via USB to your computer, and save the measured values according to your selected time interval. You can then calculate average values directly in the software or export the saved data to Microsoft Excel.
– Easiest operation
– Measurement of differential pressure and static pressure in 11 selectable units: mbar, bar, psi, kPa, …
– Measuring range from -140 to +140 mbar
– Min / max and average value display
– “Hold” function
– Backlight can be switched on / off
– For long-term measurements including power supply
– Software with USB cable included
– Battery level indicator
– Auto-off function that can be switched off
– Zero point adjustment possible at any time
– Incl. ISO calibration certificate
Measuring range (±) inH2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar | 55.40 2.000 137.8 13.79 4.072 103.4 32.00 4.612 140.6 0.140 0.137 |
Resolution � inH2O psi mbar kPa inHg mmHg ozin² ftH2O cmH2O kgcm² bar | 0.01 0.001 0.1 0.01 0.001 0.1 0.01 0.001 0.1 0.001 0.001 |
Accuracy (at 25°C / 77°F) | ± 0.3% of measuring range |
Linearity | ± 0.2% |
Response time | Approx. 0.5 sec. |
Max. pressure | 689 mbar |
Operating temperature | 0 … 50°C / 32 … 122°F |
Storage temperature | -10 … 60°C / 14 … 140°F |
Media | Air and non-explosive gases |
Real-time data-logging interval | 1 sec. to 24 h adjustable |
Display | Dual LCD |
Dimensions | 210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in (H x W x D) |
Weight (without batteries) | 650 g / 1.44 lbs |
Power supply | Battery: 1 x 9V block AC adapter: 9V DC / 500-mA |
